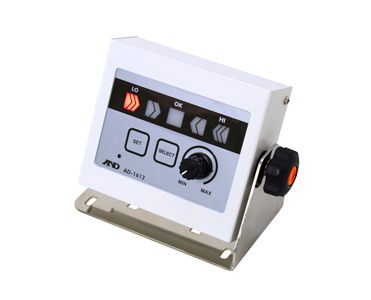

AD-1612

Power supply	AC adapter (7.5 to 15 V DC / 500 mA)
Operating temperature	–10 ˚C to 40 ˚C / 14 ˚F to 104 ˚F (no condensation)
Display	Multi-colored LED: LOLO (red) / LO (yellow) / OK (green) / HI (yellow) / HIHI (red)
Buzzer volume	Up to approx. 95 dB
Power consumption	Approx. 2.1 VA (when the LED is lit and the buzzer volume is maximum)
Dimensions	147 (W) × 80 (D) × 115 (H) mm / 5.79 (W) × 3.15 (D) × 4.53 (H) in
Net weight	Approx. 700 g / 1.54 lb (incl. the stand)
Standard accessories	DC cable, stand, rubber feet, instruction manual
Connector shape	RS-232C (D-Sub 9 pins, male)

Can be connected to an A&D balance/scale with a comparator relay output
Enables quicker and more accurate check weighing or grading with buzzer beeps in addition to red, yellow and green LED lights
Freely select from six different beep types (incl. mute) for each comparator step
Uses the AC adapter of the balance/scale to operate while also supplying power to the balance/scale via the provided DC cable at the same time
Instant data saving to a PC requiring no special software
Adjustable buzzer volume and LED brightness

AX-KO507-S200 : Communication cable (DIN 7 pins-Loose wires, 2 m)
AX-KO5862-S200 : Communication cable (DIN 8 pins-Loose wires, 2 m)
AX-KO5862-N200 : Communication cable (Loose wires-Loose wires, 2 m)
AX-TB275 : AC adapter (A plug, 9 V, 500 mA)
AX-TB280 : AC adapter (C/BF plug, 9 V, 500 mA)
