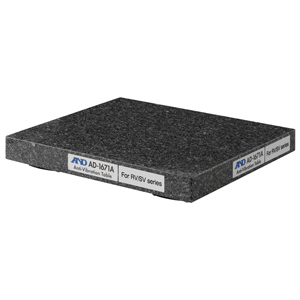

AD-1671A

Anti-Vibration Table for Viscometers/Rheometers

  • Especially effective when performing low viscosity (10 mPa•s or below) measurements
  • Depending on the measuring location, the highly sensitive tuning fork vibro sensor (incorporated in our SV-A series viscometers and RV-10000 rheometer) can be adversely affected by low-frequency vibrations that cannot be detected by humans. For example, if the laboratory is located on the high story of a building or on unstable ground, such as near the seaside, vibration may well be generated by strong winds or high waves.
Additional Links
  • Max. loading capacity Approx. 40 kg
    Material Natural granite
    Dimensions 460 (W) × 400 (D) × 66 (H) mm
    Weight Approx. 27 kg
  • Reduces measurement errors by isolating the tuning fork vibro viscometer/rheometer from minute external vibrations often imperceptible by humans

    With an RV-10000 tuning fork vibro rheometer
