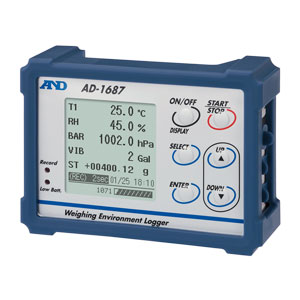

AD-1687
Weighing Environment Logger
- Temperature, Humidity, Barometric Pressure, Vibration and Weighing Data - All in One Device!
Additional Links
| Data capacity | Maximum 10,000 sets (including date and time) |
| Interval time | 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes |
| Power supply | Two LR6 (AA) batteries, RS-232C, or USB |
| Battery life | Approx. 6 months (with measurement interval at 1 minute, alkaline batteries) |
| Clock accuracy | Maximum ±1 minute/month |
| Compatible operating systems | Windows 2000 / XP / Vista / 7 / 8 / 10 (32 / 64 bit) |
| Operating environment | 0 to 60 °C / 32 to 140 °F, 85% RH or less (no condensation) |
| Dimensions | 127 (W) × 90 (H) × 36 (D) mm (including the protective cover) |
| Weight | Approx. 280 g (including batteries and the protective cover) |
| Standard accessories | Three RS-232C cables for weighing instruments (9-pin D-Sub, 25-pin D-Sub, and 7-pin DIN, 1 m), USB cable (1 m), Two LR6 (AA) batteries (for operation check), Protective cover, Instruction manual |
- Simultaneous and chronological recording of environmental and weighing data
- Four kinds of environmental data: Temperature, humidity, barometric pressure, and vibration
- Large memory capacity of 10,000 data sets
- Instant data saving to a PC requiring no special software
- Real-time transmission mode
- No battery required when connected to either a weighing instrument or a PC
- Power-saving function when operated on batteries
- Remaining battery level indicator
- Three types of RS-232C cables and a USB cable provided as standard
- Primary data mode to display only two data items of your choosing
- Trend graph mode to display chronological changes using graphs
- Interval time setting for environmental data recording
- Compact, portable dimensions of 127 (W) by 90 (H) by 36 (D) mm
- IP65 dust and waterproof construction
- AX-KO3986-150 : Waterproof extension cable (1.5 m) for the thermo-hygrometer
- AX-KO3994-100 : External temperature sensor – mounting type (cable length: 1.0 m)
- AX-KO3995-100 : External temperature sensor – grip type (cable length: 1.0 m)
- AX-KO4746-100 : Endorectal probe for mice (Φ1.6 mm)
- AX-KO4747-100 : Endorectal probe for rats (Φ3.2 mm)
| Sensor | Resolution | Measurement range | Accuracy |
| Temperature | 0.1 °C 0.1 °F |
0 to 60 °C 32 to 140 °F |
±0.5 °C (20 to 30 °C) ±0.9 °F (68 to 86 °F) |
| Relative humidity | 0.1% RH | 0 to 100% | ±5% (20 to 40%) ±3% (40 to 60%) ±5% (60 to 80%) |
| Barometric pressure | 0.1 hPa | 500 to 1100 hPa | ±4 hPa (0 to 50 °C) |
| Vibration | 1 Gal | 0 to 2000 Gal | ±20%, static acceleration |
