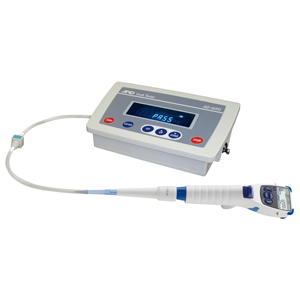

AD-1690

Leak Tester

Additional Links
  • Depressurization value -20 kPa ± 20% (Fixed)
    Pressure tolerance inside instrument +0.2 kPa / 10 seconds
    Leak test conditions Pressure tolerance setting:  +0.1 to +20 kPa (Unit: 0.1kPa)
    Monitoring time:  From 0.5 seconds (Unit: 1 second)
    Pump operation time Up to 6 seconds
    Dimensions (W) 231 mm x (D) 126 mm x (H) 78 mm
    Weight of the main unit Approx. 570 g

    Do you need to check pipette accuracy more precisely?  If so, please click here.

  • Quick testing of less than 5 seconds
  • Leak detection by depressurization ensuring no dust enters the object being measured
  • Replaceable air filter to protect the AD-1690 from dust when it intakes air
  • RS-232C interface to output data to a PC or an A&D peripheral device
  • Four types of attachments to cover micropipettes with capacities ranging from 2 μL to 10,000 μL
Pipette Accuracy Management | AD-1690 Leak Tester from A&D
  • RS-232C
  • AD-1682 | Rechargeable battery
  • AD-1688 | Weighing data logger*

    * Leak test data can also be stored.

  • AD-1690-01 | Replacement tube set (Adapter × 1, attachment × 4)
  • AD-1690-02 | Replacement filter set (Filter unit × 1, filter element × 10)
