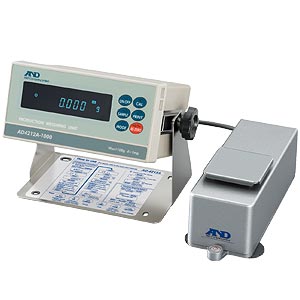

AD-4212A Series

Weigh Modules

For maximum efficiency of your production line
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
Optional
  • Series Img
Additional Links
Model AD-4212A-100 AD-4212A-200 AD-4212A-600 AD-4212A-1000
Capacity 110 g 210 g 610 g 1100 g
Readability 0.1 mg 1 mg
Stabilization time (Typical) 0-30 g: Approx. 1.1 sec 0-30 g: Approx. 0.8 sec 0-30 g: Approx. 0.9 sec 0-30 g: Approx. 0.9 sec
30-110 g: Approx. 1.3 sec 30-210 g: Approx. 1.0 sec 30-610 g: Approx. 1.1 sec 30-1100 g: Approx. 1.1 sec
Repeatability (Standard deviation) 0.15 g 1 mg
Linearity ±0.3 mg ±2 mg ±3 mg
Sensitivity drift (10 °C to 30 °C) ±2 ppm/ °C
Weighing pan 50 mm × 50 mm 70 mm × 70 mm
  • Fast stabilization (0.8 sec. at 1 mg, 1.1 sec. at 0.1 mg)
  • Slim separate weighing sensor unit (80 mm width) for compact setups
  • Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
  • Adjustable response characteristics to help cope with the effect of drafts and vibrations
  • Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, grain, and a user-programmable unit for conversion applications (either tael or tola can be added upon request)
  • Automatic zero display after data output
  • Wall/panel-mountable display unit
  • Possible to create your own weighing pan
  • Comparator contact output with buzzer
  • GLP/GMP/GCP/ISO compliant output
  • Clock and calendar function
  • Data memory function
  • Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function
  • Animal weighing (hold) function
  • Possible to control the RE-ZERO and PRINT keys via an external connection
  • Securable to a base using the provided mounting fixtures
  • Stainless steel breeze break (AD-4212A-100)
  • Comes with a free calibration weight (OIML Class E2 equivalent)
  • Windows Communication Tools software (WinCT) on CD-ROM
  • RS-232C interface
  • 3-level comparator contact output with buzzer (5-level comparator contact output is also available as an option)
  • Ethernet (TCP/IP) interface (optional)
  • BCD output/External contact input (optional)
  • AD-1683 : Static eliminator
  • AD-1684A : Electrostatic fieldmeter
  • AD-1687 : Weighing environment logger
  • AD-1688 : Weighing data logger
  • AD-1689 : Tweezers for calibration weight
  • AD-8118C : Universal printer
  • AD-8127 : Compact printer
  • AX-KO1710-200 : RS-232C cable (25P-9P)
  • AX-USB-25P : RS-232C/USB converter with cable
  • AD-4212A-01 : BCD output/External contact input
  • AD-4212A-04 : 5-level comparator contact output
  • AD-4212A-07** : Extension cable (3 m)
  • AD-4212A-08 : Ethernet (TCP/IP) interface
  • AD-4212A-19 : Stainless steel breeze break
  • AD-4212A-20 : Metal leveling foot

    * Only one of AD-4212A-01, AD-4212A-04, AD-4212A-08, or the standard interface can be used.
    ** Only one extension cable (AD-4212A-07) can be used. The maximum cable length between the display unit and the weighing unit is 5 m (2 m standard cable + 3 m extension cable).
