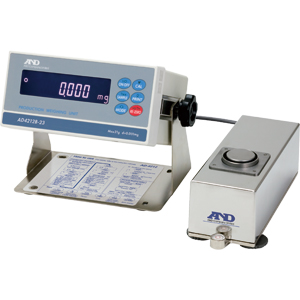

AD-4212B Series
Weigh Modules
The AD-4212B-23 was discontinued. For requirements for a weigh module with 1 µg readability, please refer to the AD-4212D-33/32.
Optional
Additional Links
| Model | AD-4212B-101 | AD-4212B-102 | AD-4212B-201 | AD-4212B-301 | ||||
| Capacity | 31 g / 110 g*** | 110 g | 210 g | 310 g | ||||
| Readability | 0.01 mg / 0.1 mg*** | 0.01 mg | 0.1 mg | |||||
| Stabilization time (when set to FAST under a good environment) | Approx. 4.0 sec / 2.5 sec |
Approx. 4.0 sec | Approx. 2.5 sec | |||||
| Repeatability (Standard deviation) |
0.2 mg | 0-30 g: 0.02 mg 30-100 g: 0.04 mg |
0.1 mg | 0.2 mg | ||||
| Linearity | ±0.05 mg / ±0.2 mg | ±0.1 mg | ±0.2 mg | ±0.3 mg | ||||
| Sensitivity drift (10 °C to 30 °C) | ±2 ppm/ °C | |||||||
| Weighing pan | Ø34 mm | 50 mm × 50 mm | ||||||
*** Smart range function: The display will switch to the standard range automatically when the value exceeds 31 g but return to the precision range when RE-ZERO (tare) is performed.
**** Repeatability for a 1 g mass using an automatic loading machine.
- Fast stabilization of 4.0 seconds for 0.01 mg readability
- Suitable for installation and weighing in vacuum chambers
- Slim separate weighing sensor unit (80 mm width) for compact setups
- Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
- Adjustable response characteristics to help cope with the effect of drafts and vibrations
- Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, grain, (either tael or tola can be added upon request)
- Automatic zero display after data output
- Wall/panel-mountable display unit
- Possible to create your own weighing pan
- Five-level comparator contact output with buzzer
- Chemically resistant, stainless steel* sensor unit
- GLP/GMP/GCP/ISO compliant output
- Clock and calendar function
- Data memory function
- Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
- Percent mode function
- Auto power on function
- Securable to a base using the provided mounting fixtures
- Stainless steel breeze break
- Comes with a free calibration weight (OIML Class E2 equivalent)
- Windows Communication Tools software (WinCT) on CD-ROM
* SUS304 for the body and SUS316 for the weighing pan
- RS-232C serial interface, 3-level/5-level comparator contact output with buzzer, and external contact input for RE-ZERO and PRINT (standard)
- BCD output and external contact input for RE-ZERO and ON/OFF (AD4212A-01, optional)
- Ethernet (TCP/IP) interface (AD4212A-08, optional)
- AD-1683 : Static eliminator
- AD-1684A : Electrostatic field meter
- AD-1687 : Weighing environment logger
- AD-1688 : Weighing data logger
- AD-1689 : Tweezers for calibration weight
- AD-8118C : Universal printer
- AD-8127 : Compact printer
- AD-8527 : Quick USB adapter
- AX-KO1710-200 : RS-232C cable (25P-9P)
- AX-USB-25P : RS-232C/USB converter with cable
