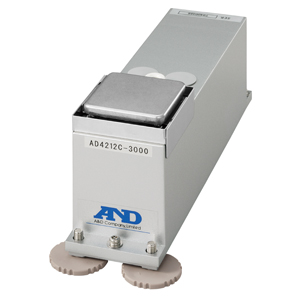

AD-4212C Series
Weigh Modules
To those who wish to double production efficiency
Just 5 mg after 30 million times!
AD-4212C-300 (320 g × 1 mg) completed an endurance test
of 30 million repeated loadings, which took more than 1 year.
The final value of span drift was a mere 5 digits, or 5 mg (display value
of 200.005 g for a standard weight of 200 g), demonstrating that the
product can maintain its accuracy over a long period of use.
See how the test was performed here.
Additional Links
| Model | AD-4212C-301* | AD-4212C-3100* | |
| Capacity | Precision range | 51 g | 510 g |
| Standard range | 320 g | 3200 g | |
| Readability | Precision range | 0.0001 g | 0.001 g |
| Standard range | 0.001 g | 0.01 g | |
| Stabilization time (when set to FAST under a good environment) |
Precision range | 1.3 sec. | |
| Standard range | 1.0 sec. | ||
| Repeatability (Standard deviation) | Precision range | 0.0002 g | 0.002 g |
| Standard range | 0.001 g | 0.01 g | |
| Linearity | ±0.002 g | ±0.02 g | |
| Sensitivity drift (10 °C to 30 °C) | ±2 ppm/ °C | ||
| Weighing pan | 50 mm × 50 mm | ||
* Smart range function: The display will switch to the standard range automatically when the value exceeds 51 g / 510 g but returns to the precision range by performing RE-ZERO (tare).
| Model | AD-4212C-300 | AD-4212C-600 | AD-4212C-3000 | AD-4212C-6000 | ||||
| Capacity | 320 g | 620 g | 3200 g | 6200 g | ||||
| Readability | 0.001 g | 0.01 g | ||||||
| Stabilization time (when set to FAST under a good environment) |
0 - 30 g | 0.5 sec. | 0 - 30 g | 0.5 sec. | 0 - 300 g | 0.5 sec. | 0 - 300 g | 0.5 sec. |
| 30 - 320 g | 1.0 sec. | 30 - 620 g | 1.0 sec. | 30 - 3200 g | 1.0 sec. | 30 - 6200 g | 1.0 sec. | |
| Repeatability (Standard deviation) | 0.001 g | 0.01 g | ||||||
| Linearity | ±0.002 g | ±0.005 g | ±0.02 g | ±0.04 g | ||||
| Sensitivity drift (10 °C to 30 °C) | ±2 ppm/ °C | |||||||
| Weighing pan | 50 mm × 50 mm | |||||||
- Fast stabilization (0.5 sec. at 1 mg and 1.3 sec. at 0.1 mg)
- Slim size (59 mm width) for installation in narrow spaces
- Direct digital data output to a panel computer, PLC, or PC via RS-232C
- High-speed data transmission of up to 50 times/second
- IP65 dust and waterproof construction
- Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
- Removable leveling feet for direct attachment on the mounting base
- Free WinCT-AD4212C software for easy calibration and response setting
- Comes with a free calibration weight (OIML Class E2 equivalent)
- CC-Link connection to a PLC through the optional AD-8923-CC remote controller (AD-8923-BCD for BCD output is also available)
AD-4212C Series Demonstration of Fast Stabilization | AD-4212C Series Weigh Modules from A&D
- RS-232C interface
- AD-1683 : Static eliminator
- AD-1684A : Electrostatic fieldmeter
- AD-1687 : Weighing environment logger
- AD-1689 : Tweezers for calibration weight
- AD-8118C Universal printer
- AD-8127 : Compact printer
- AD-8526 : RS-232C/Ethernet (TCP/IP) converter
- AD-8551R : RS-232C to RS-485 Converter (Modbus-RTU, Command mode)
- AD-8922A : Remote display unit
- AD-8923-BCD : Remote controller (BCD)
- AD-8923-CC : Remote controller (CC-Link)
- AX-USB-9P : RS-232C/USB converter with cable
- AX-KO6406-1000 : High-flex RS-232C cable (10 m, for A&D's external display)
