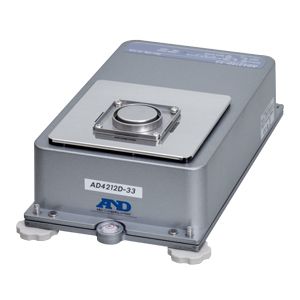

AD-4212D Series
Weigh Modules
High Readability, High Stability, Space-Saving and Cost-Saving.
Please note that the AD-1691 weighing environment analyzer is no longer supplied with the AD-4212D series.
With the WinCT-AD4212D software, it is possible to display the weighing value and change the internal settings of the balance on your PC.
Additional Links
| Model | AD-4212D-33 | AD-4212D-32 | AD-4212D-302 | AD-4212D-301 |
| Capacity | 32 g | 5.1 g / 32 g*1 | 320 g | 320 g |
| Readability | 0.001 mg | 0.001 mg / 0.01 mg*1 | 0.01 mg | 0.1 mg |
| Stabilization time (typical when set to FAST) | Approx. 7 sec | Approx. 7 sec | Approx. 7 sec | Approx. 3 sec |
| Repeatability (Standard deviation) |
0.002 mg*2 | 0.004 mg*2 / 0.02 mg | 0.02 mg*3 | 0.07 mg*3 |
| Linearity | ±0.02 mg | ±0.03 mg | ±0.15 mg | ±0.25 mg |
| Sensitivity drift (10 °C to 30 °C) | ±2 ppm/ °C | |||
| Weighing pan | Ø34 mm | Ø50 mm | ||
*1 Smart range function: The display will switch to the standard range automatically when the value exceeds 5.1 g but return to the precision range when RE-ZERO (tare) is performed.
*2 Repeatability for a 1 g mass using an automatic loading machine
*3 For a 10 g mass over the entire range
- Minimum weighing value from 1 µg
- Integrated A-to-D converter for direct connection to a PC or PLC
- Internal sensitivity adjustment weight to ensure accuracy with one key press
- Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
- Adjustable response characteristics to help cope with the effects of drafts and vibrations
- Equipped with a small breeze break
- Possible to design and attach your preferred weighing pan/receptacle
- Underhook for weighing magnetic materials and density measurements
- Can be secured directly to a base by removing the leveling feet and using screws
- Water-resistant cap for cleaning*
- High extensibility with A&D's various peripheral devices
* The AD-4212D has an IP65 rating when the cap is put on the pan support boss (after removing the weighing pan and pan support).
AD-4212D with a small breeze break
- RS-232C
- AD-1675 : Tabletop breeze break (small)
- AD-1683 : Static eliminator
- AD-1684A : Electrostatic field meter
- AD-8127 : Compact printer
- AD-8526 : RS-232C/Ethernet (TCP/IP) converter
- AD-8922A : Remote controller
- AD-8923-BCD : Remote controller (BCD)
- AD-8923-CC : Remote controller (CC-Link)
- AX-KO3590-1000 : RS-232C cable (10 m, for A&D's external display)**
- AX-KO4472-150 : RS-232C cable (1.5 m, for a PC/PLC)
- AX-KO4472-1000 : RS-232C cable (10 m, for a PC/PLC)
- AX-KO6406-1000 : High-flex RS-232C cable (10 m, for A&D's external display)
- AX-USB-9P : RS-232C/USB converter with cable
** 2 m cable is provided as standard
AD-1675 tabletop breeze break (small)
