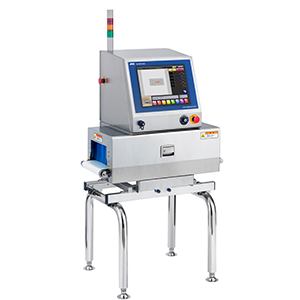

AD-4991 X-Ray Inspection System for Contamination Detection

X-ray Inspection Systems

  • With its compact design, and cutting-edge X-ray technology, the ProteX Series X-ray inspection system provides next level quality assurance.
Additional Links
  • Model AD-4991-2510 AD-4991-2515 AD-4991-3530
    Conveyor width 250mm 350mm
    System length 800mm
    Conveyor height 720-860mm
    X-ray output 100W (50kV_2mA) 150W (50kV_3mA) 300W (75kV_4mA)
    Conveyor speed 10 to 45m/min 10 to 70m/min 10 to 45m/min
    Maximum conveying capacity 5kg (depends on speed for AD-4991-2515)
    Operation temperature / humidity 0 to 35℃ / humidity below 85% (with no condensation)
    Dust / water resistance specifications IP66 for inspection room
    Power supply Single phase AC100 to 240V(±10%), 50/60Hz, D class grounding ※1
    The maximum power consumption About 570VA ※2 About 670VA ※2 About 900VA ※2
    Weight About 90kg About 105kg About 165kg
    Display 15 inch touch panel color display
    Casing material SUS304
    Belt Antifungal/antibacterial Polyurethane compounds
    Shilding curtain Tungsten
    X-ray safety Leakage less than 1μSv/h
    Communication functions Modbus TCP / Modbus RTU / RS232C/485 (selectable) / TCP/IP / USB (for PostScript printer, USB memory, data storage, image import use)
    External input Non - voltage contact input 8 points ※3
    External output Relay output 8 points ※3
    Number of recorded items 1000 items (10 groups x 100 items)
    Beam diagram (mm) Protex AD-4991 Protex AD-4991 Protex AD-4991

    *1 The cable doesn’t come as standard.
    *2 The maximum power consumption when a rejector is connected.
    *8points can be added with an option.

  • Most compact system on the market.
  • Simple GUI with a 15'' color touchscreen provides for easy operation
  • Quick and stable product setup
  • Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
  • Suitable for use in HACCP program
  • Easy cleaning and replacement with quick release belt and curtains
  • Stainless and sloped surfaces minimize water collection and maximize clean-ability.
  • Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure.
ProteX | A&D's X-ray Inspection System
  • Most Compact System on the Market
    The size of 575mm width and 800mm length makes integration painless whether it be an existing line or new production line (675mm width for AD-4991-3530).
  • 15"Color Touchscreen for Easy Operation



    Simple GUI for Operators of all types.
    Easy to discern good products from bad products.

    Shape detection



    Choosing an inspection item



    Monitoring parameters

  • Easy Product Setup
    Setting up a new product requires three passes through the machine.
    Inspection thresholds will automatically be configured based on the sample that was registered, making product setup foolproof.
  • Versatile Inspection
    Not only contaminant detection, but product integrity inspection such as shape, counting, positioning, and mass estimation come as standard.

    Shape inspection

    Counting inspection

    Positioning inspection

    Mass estimation inspection



  • Data Management and HACCP Compliance
    Export production reports, statistics, and image via USB or access on the machine in real-time.

    Rejects Log

    Production Charts

    Inspection Summary

  • Sanitary Design
    Sloped surfaces are designed to minimize water collection and maximize cleanability.

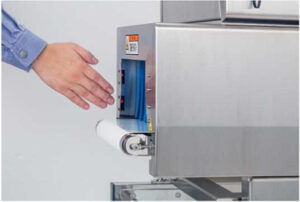

    Quick release belt designed for easy cleaning and replacement.

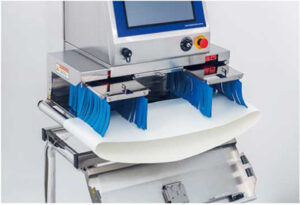

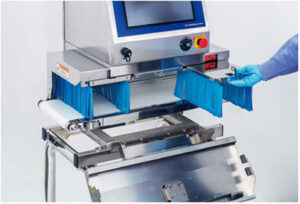

    Quick release curtains allows for easy cleaning and replacement.

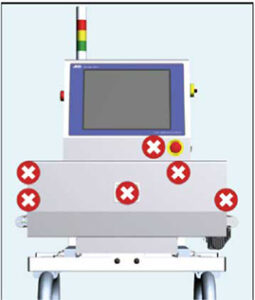

  • X-ray safety Safety sensors are embedded at access points to provide additional safety.

    Machine Faults are visually displayed, allowing operators to quickly fix and resume operation.
