AD-5588

A&D > Test and Measurement > AD-5588

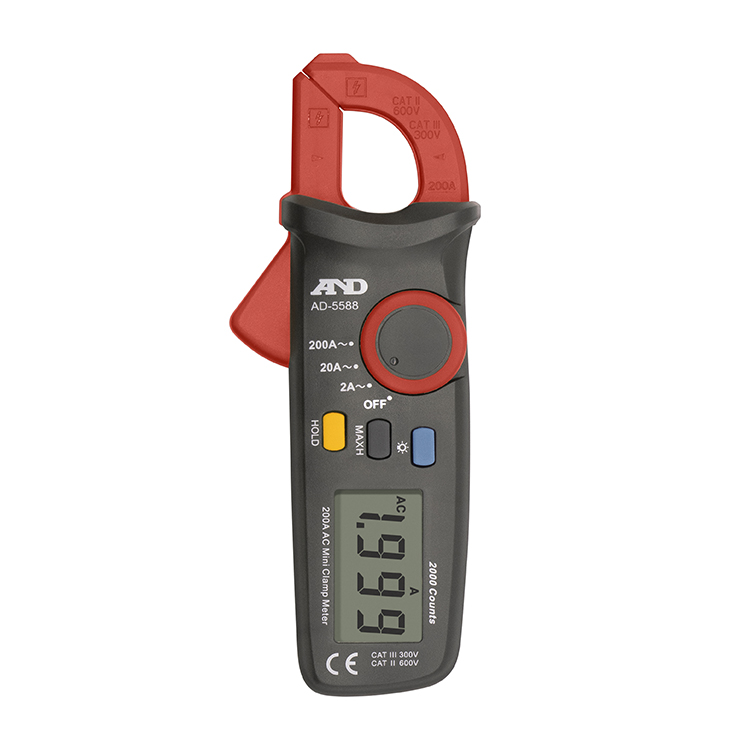

Mini clamp meter AD-5588

1999 count display
Peak hold function
Data hold function
backlight function
Battery life 350 hours (continuous standby time)

Additional Links

type name	standard price	Product code	JAN code
AD-5588	INR7000	AD5588	4981046223751

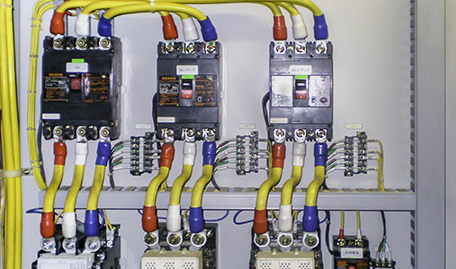

For current measurement of electrical equipment in narrow places

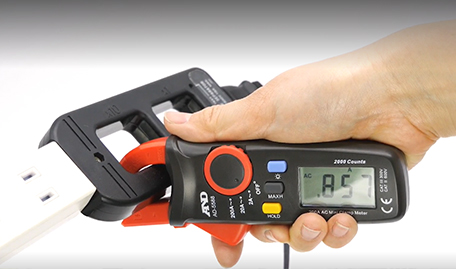

Use the line separator to check electrical appliances

Features and precautions of the clamp meter

Switching between measurement range, resolution, and accuracy using the function switch

Hold function and peak hold function

With backlight for easy viewing even in dark places

Battery life 350 hours (continuous standby time) Sleep mode

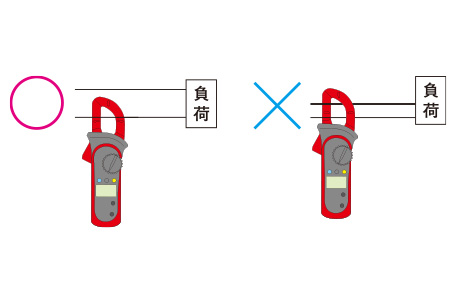

Correct use of clamp meter

A clamp meter is a device that clamps (pinch) a wire to check electrical settings during operation.
read more

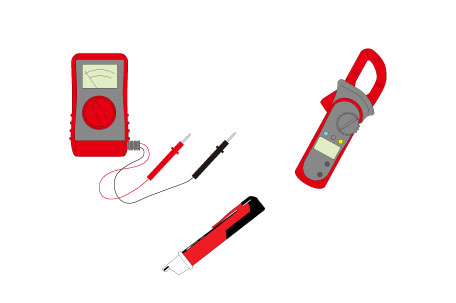

Differences between voltage detectors, testers (multimeters), and clamp meters

There are various types of electrical measuring instruments, and it is necessary to use them properly according to the measurement items and purposes.
read more

Display	1999power und liquid crystal display
Over input display	OL
Sampling	About 3 times/sec
Clip inner diameter	About Φ16mm
Maximum input current	200 Arms
Operating temperature and humidity range	0°C to 30°C (75% RH or less, no condensation)
Storage temperature and humidity range	30°C to 40°C (40% RH or less, no condensation)
power supply	Up to 2000m above sea level
Storage temperature range	-10°C to 50°C (75% RH or less, no condensation)
Power supply	2 AAA batteries
Battery life	About 350 hours (continuous standby time)
External dimensions	158 mm (W) x 60 mm (H) x 33.5 mm (D)
Mass	About 170g (including batteries)
Accessories	Instruction manual, battery (for monitor)

type name	Product name	standard price	Product code	JAN code
AXP-AD5588-1	Battery cover for AD5588	¥480 (excluding tax)	AXP-AD5588-1	4981046101332

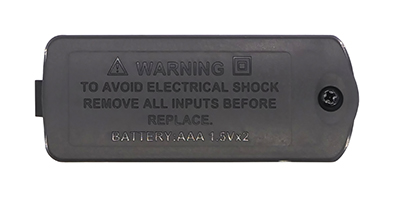

Battery cover AXP-AD5588-1
