A&D > Test and Measurement > AD-5701A-E
AD-5701A-E

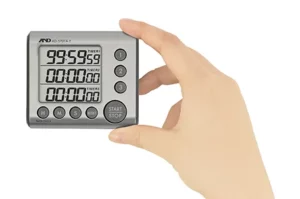

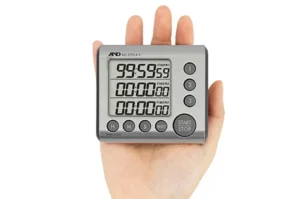

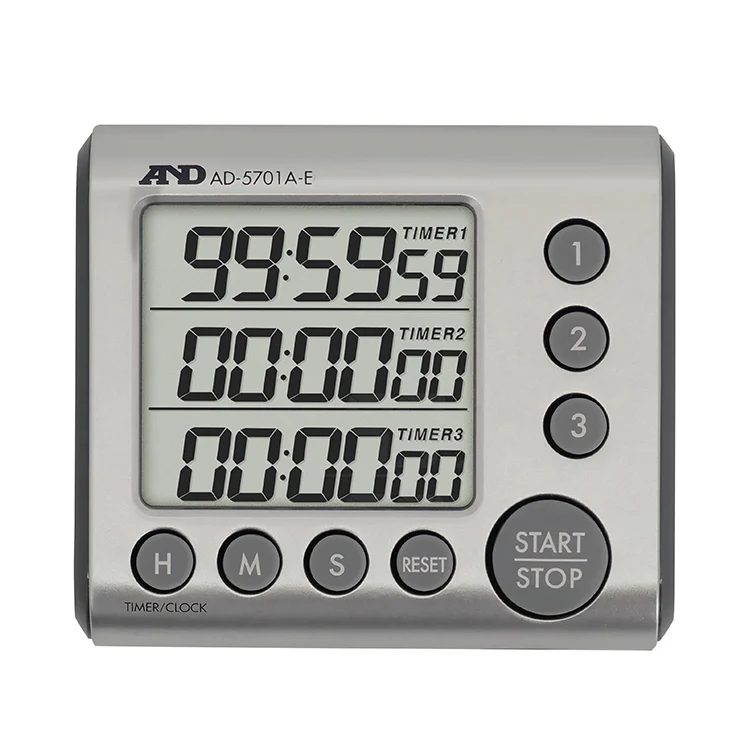

3-channel 100-hour timer AD-5701A-E
A silver-colored kitchen timer that matches the stainless steel color of the kitchen.
- Timer time can be set up to 99 hours, 59 minutes and 59 seconds
- 3 different timer times can be set.
- 3 channels can be started/stopped individually or simultaneously. - Time
can be set in 1 second increments.
With a reload function that can be easily set
・Automatically counts up after the timer has been set
・Countdown/countup can be used together ・Equipped with
time/calendar mode
(Strap not included)
*Handling Precautions:
Be sure to hold the timer button by hand when operating it.
If you press the button while it is attached to a metal surface using a magnet, the timer may malfunction or it may fall and be damaged.
Additional Links
| type name | standard price | Product code | JAN code |
|---|---|---|---|
| AD-5701A-E | INR3300 | AD5701A-E | 4981046220415 |
 |
 |
 |
|

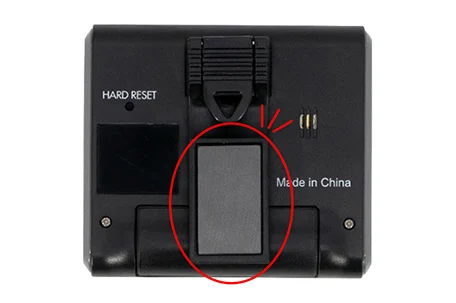

Back magnet
It can be attached to metal surfaces such as refrigerators
(please be careful).Do not operate the button while it is attached. The timer may malfunction or fall and be damaged.

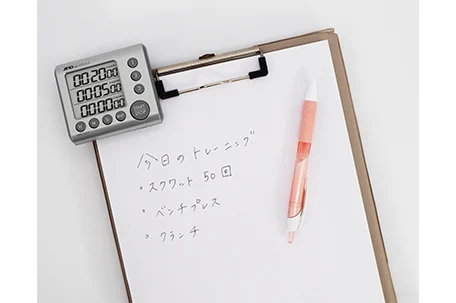

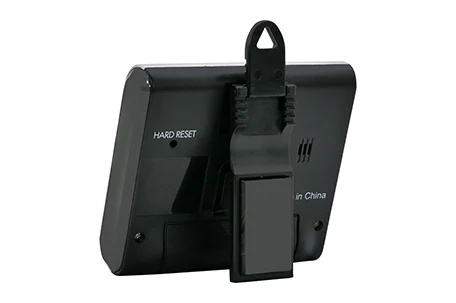

Clip
Comes with a clip to hold notes and documents
Desktop stand
The clip part can also be used as a stand, so it can be placed upright on a tabletop.

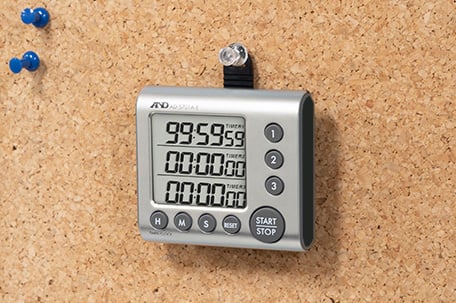

Wall hanging
Can be hung on the wall with the wall hook

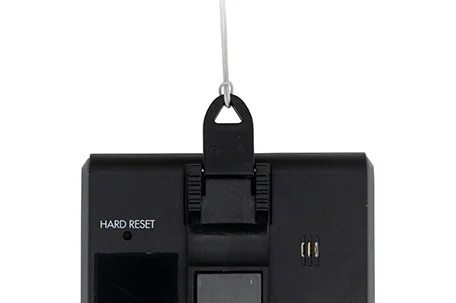

Strap attachment
(strap not included)
It is possible to pass the strap through the wall hook and hang it around the neck.
 |
 |

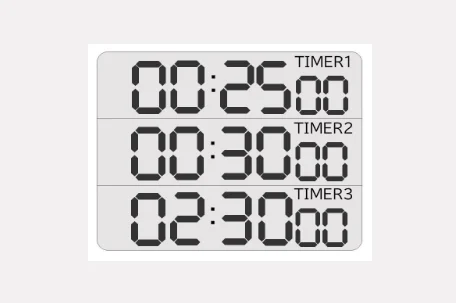

Increase your productivity with the Pomodoro Technique
Pomodoro Technique is one of the time management techniques to improve concentration and efficiently perform tasks.
read more
| Specification | Details |
|---|---|
| Display item | Time/Calendar (Year, Month, Day) or 3-Channel Timer |
| Timer Set Range | 00:00:00 to 99:59:59, minimum 1 second |
| Number of Timers | 3 Channels |
| Timer Functions | Count Up, Count Down |
| Alarm | Buzzer Sound: Approx. 30 seconds, Volume: ~70 dB at 10 cm |
| Time Display | Current Time (Hour: Minute: Second), Switchable 12/24 Hour System, Year (Christian Calendar), Month, and Day |
| Accuracy | ±1 second per day |
| Operating Temperature and Humidity Range | 0 to 40°C, 10 to 90% RH (No Condensation) |
| Storage Temperature and Humidity Range | -10 to 50°C, 10 to 95% RH (No Condensation) |
| Battery Used | 1 x AAA Battery (Alkaline recommended) |
| Battery Life | Approx. 1 year (When using alkaline batteries and operating the alarm for 90 seconds per day) |
| Power Supply | 1 x AAA Battery |
| External Dimensions | 80mm (Width) x 70mm (Height) x 30mm (Depth) |
| Body Mass | About 85g (Including Battery) |
| Accessories | Battery (For Monitor), Instruction Manual |
