AD-8118C

Universal Printer

  • The AD-8118C is a universal printer designed for connection with indicators, scales and electronic balances.
Additional Links
Printer specifications
Print type Dot matrix impact printer
Number of characters Standard: 24 characters 5 1 line (5 5 7 dot) Enlarged: 12 characters 5 1 line (10 5 7 dot)
Character size Standard: 1.7(W) 5 2.6(H)mm Enlarged: 3.4(W) 5 2.6(H)mm
Printing speed Approx. 1.7 lines/second (Internal processing time excluded)
Reliability 1,000,000 lines
Print color Black
Ink ribbon life Approx. 200,000 characters (Depending on surrounding environment)
Printer paper AX-PP137-S (10 rolls), 57.5(W) 5 ·0mm, Approx. 8,000 lines/roll
Data communication RS-232C/Current loop, switching with a slide switch
Control I/O Input: Print/Feed paper/Batch print/Lot print, etc. Output: Busy/Printing, Open collector
General specifications
Power 100V to 240V(+10% -15%) AC (85V to 264V AC), 50/60Hz
Weight pprox. 2.0kg (Shipping weight: approx. 3.5kg)
Operating temp. & humidity range 0-C~40-C, 80% RH or less (No condensation)
External dimensions 192(W) 5 185(D) 5 96(H)mm
Panel cut dimensions 186(+1.0,-0.0) × 92(+0.8,-0.0) mm
LCD display 16 characters 5 2 lines (Character: 2.15mm width 5 4.35 mm height)
Power consumption When AD-8118C-02 is installed: approx. 17VA
When AD-8118C-02 and AD-8118C-10 are installed: approx. 20VA
  • Date and time printing function (built-in calendar/clock)
  • Cumulative memory function (Memory stored even if the power supply is switched off.)
  • Internal battery provides calendar/clock and cumulative memory function back-up for approx. 10 years.
  • Cumulative/statistical calculation functions by code/ input channel

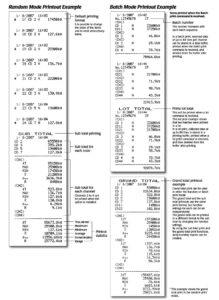

  • Print modes* : Random, Dump, Interval, and Batch
  • Print format modification function using the operation keys (in the random print mode)

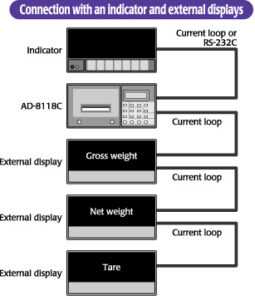

  • Connectable to external displays (up to 3 devices) with a current loop output (channel 1 only)

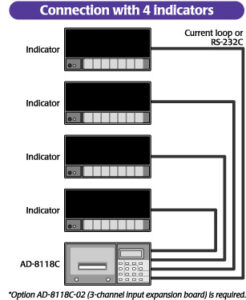

  • Up to 4 data output devices including indicators (AD-8118C-02 required) can be connected to a single AD-8118C printer.
  • Receives input signal via a current loop (maximum length of approx. 100m) or RS-232C (maximum length of approx. 15m)

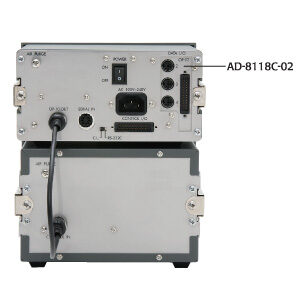

  • AD-8118C-02

    3-channel input expansion board
    Data input of 4 channels including the main unit is possible.
    Input/Output - RS-232C/Current loop (Channels 2~4. Can be switched via connector connection.)
    Control I/O - Open collector
    Weight - Approx. 0.4kg (Shipping weight: approx. 0.5kg)

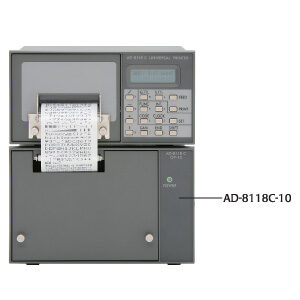

  • AD-8118C-10

    Automatic paper winder
    Power supply - From AD-8118C via standard control cable, 1KO3228 (approx. 30cm)
    Operating temperature and humidity range - Same as AD-8118C
    External dimensions - 192(W) 5 185(D) 5 120(H)mm
    Panel cut dimensions - 183(+1.0,-0.0)×115(+0.8,-0.0) mm
    Weight - Approx. 2.2kg (Shipping weight: approx. 3.8kg)

  • nk ribbon - AX-ERC-09-S (5 pcs.)
  • printer paper - AX-PP137-S (10 rolls)
