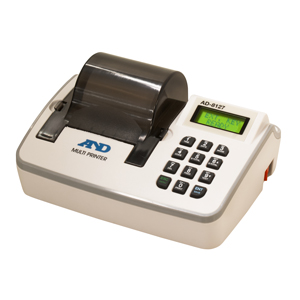

AD-8127

Character specifications	7 × 9 dots, 1.6 (W) × 3.2 (H) mm
Printing speed	Approx. 1.6 lines/second
Paper feeding speed	Approx. 4 lines/second
Number of characters printed	24 characters/line
Printer paper width	57.5 mm
Operating environment	0 to 40 ˚C/32 to 104 ˚F, 35 to 85%RH (no condensation)
Storage environment	−20 to 60 ˚C/−4 to 140 ˚F, 10 to 90%RH (no condensation)
Interface	RS-232C (D-Sub 9P, male) / Current loop (DIN)
Power supply	AC adapter
Size / weight	174 (W) × 141 (D) × 87 (H) mm / approx. 500 g
Standard accessories	Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)*

* The cables can be changed to either a DIN or current loop cable at time of order.

Easy setting and operation with a numeric keypad and LCD display
Built-in calendar and clock for printing date and time at any time
Sends re-zero and weighing data request commands to the balance/scale
Clear and visible dot matrix printing, which also enables long-term preservation of the printed records
Compact and lightweight for portability and installation anywhere
Interval printing mode for printing weighing data at set intervals
Chart printing mode for printing time-series variations of weighing data
Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from the balance/scale
Performs and prints the results of statistical calculation including standard deviation
Prints an ID number set for the printer at any time
Dust-free paper (AX-PP173-S) available for use in clean rooms
Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to connect to balances/scales with different interfaces*
Comes with an AC adapter as standard
Receives a print, paper feed, print statistical calculation results, print total, re-zero, or weighing data request command from the optional foot switch (AX-SW128)

* The cables can be changed to either a DIN or current loop cable at time of order.

AX-PP137-S : Plain printer paper (10 rolls)
AX-PP173-S : Dust-free printer paper (10 rolls)
AX-ERC-22B-S : Ink ribbon (5 pcs)
AD1682 : Rechargeable battery unit*
AD-8529PC-W : Bluetooth converter for PC
AD-8529PR-W : Bluetooth converter for printer

* Units manufactured in March 2018 or later only. Please inquire before making a purchase.
