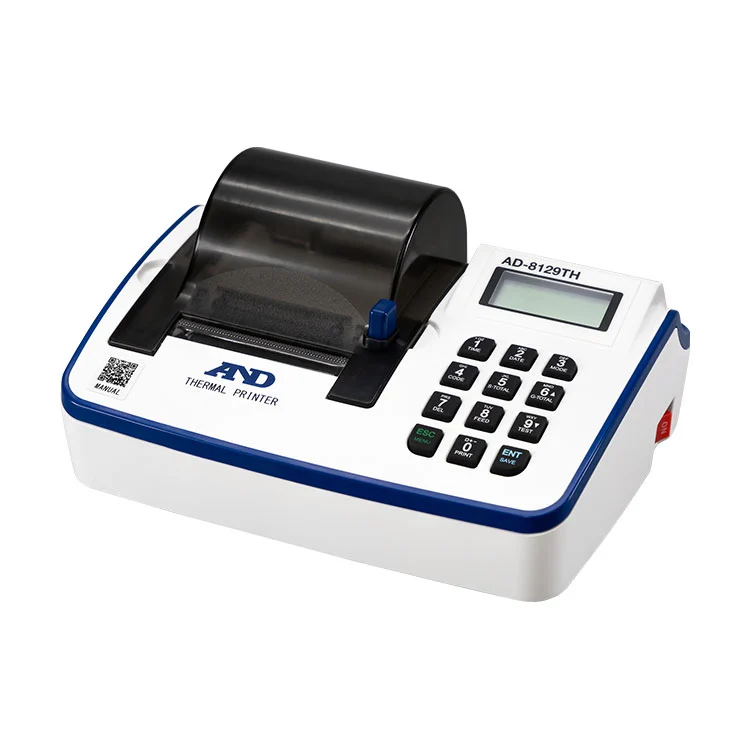

AD-8129TH

Compact Thermal Printer

Compact, user-friendly, and multi-functional

― Ideal for A&D’s balances and scales

Additional Links
Printing method Direct thermal
Character specifications 13 × 28 dots, 1.5 (W) × 2.6 (H) mm
Number of characters printed 24 characters/line
Operating environment 0 to 40 ˚C (32 to 104 ˚F), 20 to 85 %RH (no condensation)
Storage environment −10 to 50 ˚C (14 to 122 ˚F), 10 to 90 %RH (no condensation)
Interface RS-232C (D-Sub 9-pin) / Current loop (DIN)
Power supply AC adapter
Size / weight 174 (W) × 141 (D) × 87 (H) mm / Approx. 500 g
Standard accessories Thermal printer paper (1 roll), AC adapter, AC adapter labels, Simplified instruction manual, RS-232C cable (D-Sub 9-pin to 9-pin, 1 m), Power supply cable (2 m)

 Easy setting and operation with a numeric keypad and LCD display
 Built-in calendar and clock for printing date and time at any time
 Sends re-zero and weighing data request commands to the balance/scale
 Password lock function to prevent unauthorized changes to settings
 Clearly visible thermal printing with adjustable printing density
 Interval printing mode for printing weighing data at set intervals
 Chart printing mode that visualizes time-series variations in weighing data
 Dump printing mode useful for printing GLP/GMP/GCP/ISO-compliant output from the balance/scale
 Performs and prints the results of statistical calculations including STDEV together with the minimum weight (based on STDEV)
 Prints an ID number (8 alphanumeric characters) set by the user for the printer at any time
 Dust-free paper (AX-PP183-S) available for use in clean rooms
 Receives a print, paper feed, print statistical calculation results, print total, re-zero, or weighing data request command from the optional foot switch (AX-SW138)

AX-PP147-S : Thermal printer paper (5 rolls)
AX-PP183-S : Dust-free thermal printer paper (10 rolls)
AX-SW138 : Foot switch for the AD-8129TH
AX-KO2741-100 : RS-232C cable (D-Sub 9-pin to 9-pin, 1 m)*1
AX-KO2741-180 : RS-232C cable (D-Sub 9-pin to 9-pin, 1.8 m)
AX-KO2116-090 : RS-232C cable (D-Sub 25-pin to 9-pin, 0.9 m)
AX-KO1710-200 : RS-232C cable (D-Sub 25-pin to 9-pin, 2 m)
AX-KO1786-200 : RS-232C cable (DIN to D-Sub 9-pin, 2 m)
AX-KO5291-100 : Current loop cable (DIN to D-Sub 9-pin, 1 m)
AX-KO4454-010 : RS-232C splitter cable    PDFFlyer (PDF 1.1 MB)
AD1682*2 : Rechargeable battery unit

*1 Also provided as standard
*2 Units manufactured in March 2018 or later only. Please inquire before making a purchase.
