A&D > Weighing > AD-8527

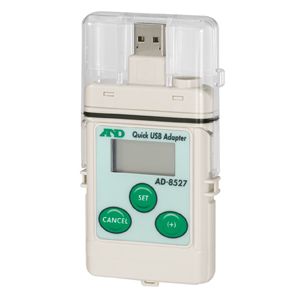

AD-8527
Quick USB Adapter
- The AD-8527 transfers weighing data to a PC in real time via an RS-232C connection with a weighing instrument and a USB connection with a PC.
This enables a PC without COM ports to receive data. - To change the internal settings of the AD-8527, please download the AD-8527
Setting Tool:
(Please read pdf file before downloading the software.)
Download the AD-8527 Setting Tool (ZIP file 40KB)
Additional Links
| Clock error | ±1 minute / month |
| Compatible OS | Windows 2000 / XP / Vista |
| Dedicated power supply | Not required. Power is supplied by the weighing instrument or PC. |
| Operating environment | 5 °C to 40 °C (41 °F to 104 °F), 85 %RH or less (no condensation) |
| Dimensions | 55 × 103 ×16.5 mm |
| Weight | Approx. 60 g |
| Standard accessories | USB extension cable (0.5 m)*, Three RS-232C cables (1 m) |
* If the AD-8527 is not detected by your PC
Depending on your type of PC, if a USB extension cable is used, the signal may weaken and not be detected by the computer.
Please either connect the AD-8527 directly to your PC without using a USB extension cable, or connect the AD-8527 to your computer using an off-the-shelf USB hub.
- Data transmission to any application such as Excel, Word, and Notepad
- No driver software required
- Internal clock to transfer the date and time at the same time
- Pocket size of 55 × 103 × 16.5 mm
- IP65 (with the casing cover)
- No battery required
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| *Operation with devices made by manufacturers other than A&D is not guaranteed. |
