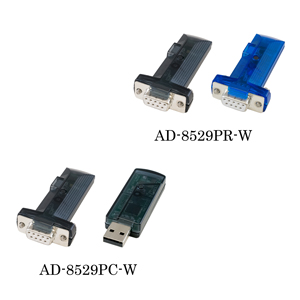

AD-8529PC/PR-W

Bluetooth® Converters

The AD-8529PC/PR-W Bluetooth® converters enable wireless communication between a balance/scale and a PC/printer using Bluetooth® technology (line-of-sight distance approx. 10 m when there is no radio wave interference).*2
Pairing is unnecessary so data transfer can begin right away.

*1 A&D no longer produces the AD-8121B compact printer and now offers the AD-8127 instead.
*2 Please contact your local A&D representative to find out whether the AD-8529PC/PR-W is certified for compliance with Bluetooth® communication laws in your country.

Additional Links
Communication distance Line-of-sight 10 m maximum (when there is no radio interference)
Compatible OS Windows XP / Vista / 7 / 8.1 / 10 (both 32 bit and 64 bit)
Dedicated power supply Not required (some devices require a separately-sold AC adapter)*3
Operating environment 5 °C to 40 °C (41 °F to 104 °F), 85 % RH or less (no condensation)
Dimensions Module for balance/scale or printer: Approx. 19 (W) × 17 (H) × 65 (D) mm
Module for PC: Approx. 22 (W) × 12 (H) × 66 (D) mm
Weight Module for balance/scale or printer: Approx. 18 g
Module for PC: Approx. 12 g
Communication method CYBLE-022001-00 (Cypress Semiconductor)
Bluetooth® 4.1(Bluetooth® Low Energy)

*3 Please refer to the connection compatibility table.

  • Eliminates spacing/cabling problems and risk of contamination in places such as fume hoods, safety enclosures and glove boxes
  • Prevents substances from adhering to printer paper by isolating the balance from the printer
  • Easy data transfer and management with A&D's free WinCT software

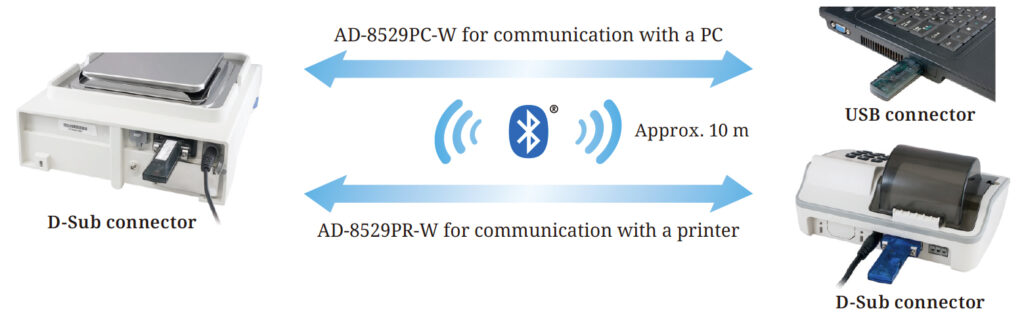

AD-8529PC-W: AD-8529PR-W:
For communication between a balance/scale and a PC. Plug and play with Windows 10. (For earlier versions of Windows, install the driver software in the provided CD-ROM or downloaded from here). For communication between a balance/scale and an A&D printer. No AC adapter is required when used with the AD-8127.
