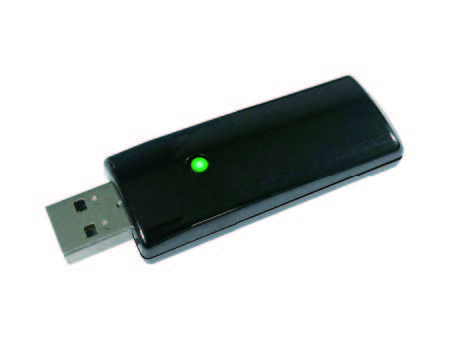

AD-8541-PC

Supported operating system	Windows XP/Vista/7/8.1/10, 32/64 bit
Operating environment	–10 to 40 ˚C / 14 to 104 ˚F, 85% R.H. or less (no condensation)
Power supply	From USB port
Communication range	Max. 10 m (line of sight)
Wireless communication module	EYSHCNZXZ (TAIYO YUDEN CO., LTD.) Bluetooth^® 4.2 (Bluetooth^® Low Energy)
Serial communication parameters	Baud rate: 2400 bps Bit length / parity: 7 bit / even Stop bit: 1 bit
External dimensions	Approx. 24 (W) × 12 (H) × 74 (D) mm
Net weight	Approx. 15 g

Enables a PC (with communication software such as WinCT installed) to wirelessly receive data from and send commands to a Bluetooth^® compatible scale such as the SJ-WP-BT series through its USB port^*1
Requires no cable connection, which can compromise the sealing of a waterproof scale

*1 The driver software for the AD-8541-PC is automatically installed with Windows 8.1 or later. If the driver cannot be installed, download it from here. WinCT is also downloadable for free.
