A&D Apollo GX-L/GF-L Series

High-Capacity Precision Balances

Dedicated software WinCT-GXA-Filter
This software is for users who wish to install the GX-L/GF-L balance in an automated weighing system and adjust its response settings beyond the standard settings.

Parameter setting software WinCT-ParamSet
This software can read and change the internal settings of an A&D electronic balance all at once.

  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
Optional
  • Series Img
  • Series Img
  • Series Img
Model GX-12001L
GF-12001L
GX-22001L
GF-22001L
GX-32001L
GX-32001LS
GF-32001L
GX-32001LD
GX-32001LDS
Capacity 12 kg 22 kg 32 kg 6.2 kg / 32 kg*i
Readability 0.1 g 0.1 g / 1 g*i
Repeatability (standard deviation) 0.1 g 0.1 g / 0.5 g
Minimum Weight*ii 140 g
Linearity ±0.2 g ±0.2 g / ±1 g
Stabilization time (typical when set to FAST) Approx. 1.5 seconds
Counting mode Minimum unit mass 0.1 g 1 g
Number of samples 10, 25, 50 or 100 pieces
Percent mode Minimum 100% reference mass 10 g 100 g
% readability 0.01%, 0.1% or 1% (depends on the reference mass stored)
Weighing pan size 384 × 344 mm
External dimensions Swing-arm type (GX-L/GF-L) 372 (W) × 615 (D) × 130 (H) mm*iii
Separate type (GX-LS) 344 (W) × 442 (D) × 130 (H) mm*iv
Net weight Internal adjustment type (GX-L/GX-LS) Approx. 17 kg
External adjustment type (GF-L) Approx. 15 kg -
Model GX-42001L GX-62001L
GX-62001LS
GX-62000L
GX-62000LS
GF-62000L
GX-102000L
GX-102000LS
Capacity 42 kg 62 kg 62 kg 102 kg
Readability 0.5 g 0.1 g 1 g
Repeatability (standard deviation) 0.5 g 0.2 g 0.7 g 1 g
Minimum Weight*ii 410 g 140 g 1.4 kg
Linearity ±1 g ±0.5 g ±1 g ±2 g
Stabilization time (typical when set to FAST) Approx. 1.5 seconds
Counting mode Minimum unit mass 0.5 g 0.1 g 1 g
Number of samples 10, 25, 50 or 100 pieces
Percent mode Minimum 100% reference mass 50 g 10 g 100 g
% readability 0.01%, 0.1% or 1% (depends on the reference mass stored)
Weighing pan size 384 × 344 mm 386 × 346 mm
External dimensions Swing-arm type (GX-L/GF-L) 372 (W) × 615 (D) × 130 (H) mm*iii 373 (W) × 615 (D) × 130 (H) mm*iii
Separate type (GX-LS) 344 (W) × 442 (D) × 130 (H) mm*iv 346 (W) × 443 (D) × 130 (H) mm*iv
Net weight Internal adjustment type (GX-L/GX-LS) Approx. 17 kg Approx. 18 kg
External adjustment type (GF-L) - Approx. 15 kg -
*i Smart range function: Automatically switches between the precision and standard ranges, and recovers the full precision range with a press of the TARE key.
*ii Pursuant to the United States Pharmacopeia (USP), Chapter 41
*iii Dimensions when the swing-arm stand is pulled fully down.
*iv Dimensions of the base unit. The dimensions of the display unit is 260 (W) × 164 (D) × 202 (H) mm, and the cable length is 3 m.

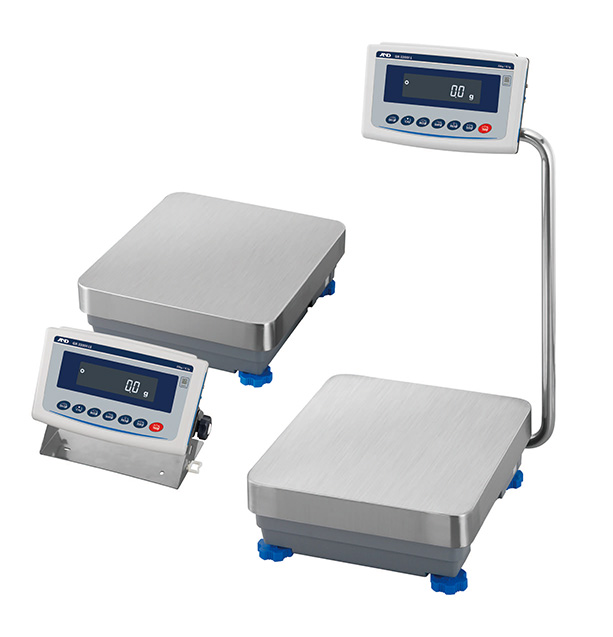

  • Flexible display position with either swing-arm or separate display stand
  • IP65 dust and waterproof
  • Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor*1
  • Shock logging function that records up to 50 adverse impact loads with a timestamp for later inspection
  • Flow rate display (FRD) that makes calculating and recording flow rates easier and more accurate*2
  • Flow rate comparator that indicates whether the flow rate is within the designated limits
  • Automatic level detection and warning
  • Tare memory function that saves the tare value in non-volatile memory
  • AD-Just – Automatic self-sensitivity adjustment according to the set execution condition using the internal weight (GX-L)
  • Automatic precision assessment (APA) using the electronically controlled load (ECL)
  • Automatic minimum weight calculation with either ECL or an actual, external weight
  • Alert function to ensure that the measured quantity is not smaller than the set minimum weight
  • Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
  • User access control (UAC) that password-protects the balance from misuse
  • GLP/GMP/GCP/ISO compliant output to meet documentation requirements
  • Universal Flexi Coms (UFC) to customize printout content and layout *3
  • Gross/Net/Tare output
  • Data memory function to save weighing results, sensitivity adjustment/calibration test results, unit
  • masses to be used in counting mode, etc., in the device itself
  • Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function for target weighing or checking sample variation
  • Animal weighing (average & hold) function for weighing moving objects
  • Statistical calculation function (SCF) to facilitate the analysis of measurements
  • Five-level comparator function with buzzer
  • Auto power ON and OFF functions
  • Density determination function
  • Underhook for weighing a magnetic material as well as measuring density (optional)

    *1 Patented
    *2 For graphing weight and flow rate changes in real time, download WinCT-FRD here
    *3 For editing and sending UFC setting commands, download WinCT-UFC here

External Input/Output
RS-232C interface (standard)
Quick/bi-directional USB interface*4 (standard)
Comparator relay output/buzzer/external key input interface (optional)
Analog (0-1/0.2-1 V) output interface (optional)

*4 Users can toggle between the Quick USB mode (plug-and-play with weighing data output to a PC only) and the Virtual COM mode (for bi-directional communication) with internal settings. For the latter, a special driver (available for download here) needs to be installed on the PC (except for those with Windows 10/11).

Options

GXL-04*5*6 : Comparator relay output/buzzer/RS-232C/external key input interface    PDFManual (PDF 1.8 MB)
GXL-06*5*6 : Analog (0-1/0.2-1 V) output/RS-232C interface    PDFManual (PDF 1.8 MB)
GXL-07 : 5-meter cable for the GX-LS
GXL-08*5*6 : Ethernet (TCP/IP) interface    PDFManual (PDF 545 KB)
GXL-27*5*7 : Bluetooth® interfacee    PDFManual (PDF 447 KB)
GP-12 : Animal weighing pan    PDFManual (PDF 111 KB)
GP-16 : AD-8129TH / AD-8127 printer support    PDFManual (PDF 167 KB)
GP-20 : Underhook for models with 42 kg capacity or below    PDFManual (PDF 636 KB)
GP-21 : Underhook for models with 62 kg capacity or above    PDFManual (PDF 636 KB)

*5 Only one of GXL-04, GXL-06, GXL-08, GXL-27, or the standard (RS-232C and USB) interfaces can be used.
*6 The GX-L/GF-L series are not IP65 with GXL-04, GXL-06 or GXL-08.
*7 Please contact your local A&D representative to find out whether GXL-27 is certified for compliance with Bluetooth® communication laws in your country.


Accessories
AD-1641 : Air flow logger
AD-1682 : Rechargeable battery unit
AD-1683A : Static eliminator
AD-1684A : Electrostatic field meter
AD-1687 : Weighing environment logger
AD-1688 : Weighing data logger
AD-8129TH : Compact printer
AD-8526 : Serial/Ethernet (TCP/IP) converter
AD-8920A : Remote display
AD-8922A : Remote controller
AX-GXL-31 : Display unit cover (5 pcs)
AX-KO2737-500 : Waterproof RS-232C cable (5 m)
AX-USB-9P : RS-232C/USB converter with cable
