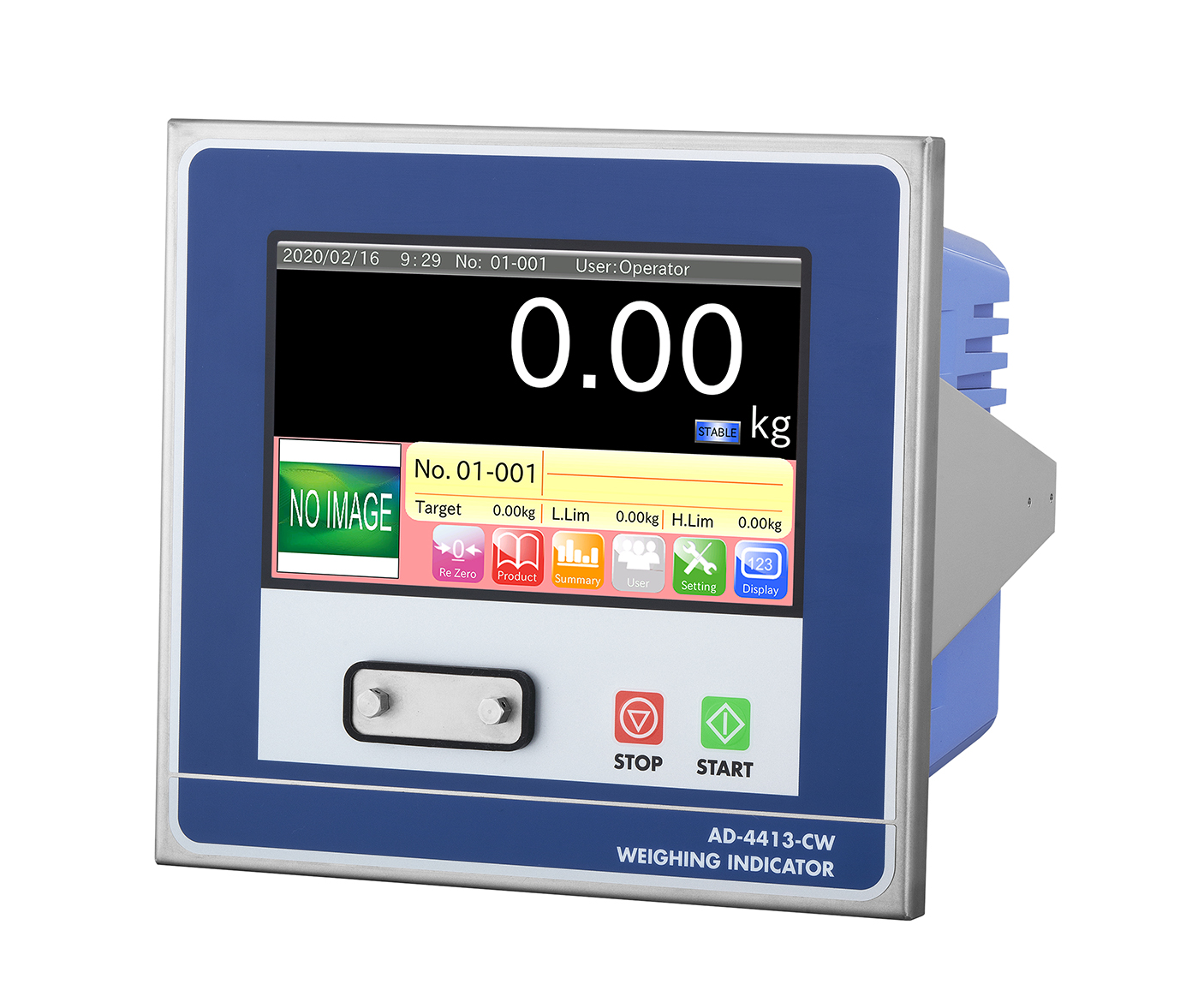

AD4413-CW

High functionality touch panel color LCD weighing indicator for check weighers

  • Uses a stainless steel frame to increase durability
  • 7” high-visibility touch panel color LCD
  • Up to 1,000 registered items
  • 4000 times/second high-speed sampling
  • A/D resolution 16,000,000 counts
Additional Links
  • Feedback control
  • Three types of weighing modes: Passing, Stopping, and Static Weighing
  • Reports for operational history, weighing history, histogram, control charts, and summary reports.
  • Display various data on smartphones and tablets over wireless LAN during measurement.
  • Item photo import from a USB Flash Drive
  • Easy setting restoration using a USB Flash Drive.
  • Save data to a USB Flash Drive and import it to personal computer.
  • AD4413-CW is compliant with IP65 dustproof/waterproof standards when attached to the panel using the panel mount bracket.
  • AD4412-02 : Relay output 9 points AC250V 3A/DC30V 3A
  • AD4412-05 : Parallel I/O DI 16 points DO 16 points DC40V 50mA
  • AD4412-07 : Analog output 1ch 4-20mA or 0-10
    add AD4412-17 x 3 then Maximum 4ch
    Output weighing value, conveyer speed control
  • AD4412-17 : Analog output module 4-20mA or 0-10V
  • AD4412-11 : Bracket for display stand
