AD-5635

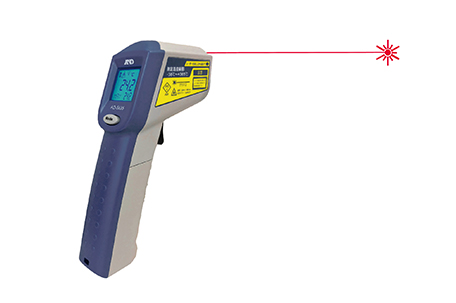

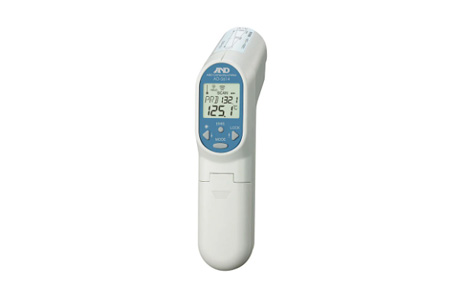

Infrared thermometer with laser marker AD-5635
PS/C mark certified product | With laser marker
- Instantaneous measurement (response speed approx. 1 second)
- Non-contact, safe and hygienic
- LCD display with backlight
Main uses
- Heat generation and temperature control of machinery, piping equipment, and air conditioning equipment
- Temperature measurement and control in the paint drying process
- Temperature control of asphalt pavement and concrete curing Temperature control of plastic molding and resin products
Heat generation and temperature control of floors and ceilings - Control of fermentation and maturation temperature of foods such as sake, soy sauce, miso, bread
- Temperature control of food (meat, seafood) and temperature during transportation and storage
"Trivia of Radiation Thermometer" document download
You can download a pdf document that summarizes "bits of knowledge about radiation thermometers" posted at the bottom of the page for free.
Additional Links
| type name | standard price | Product code | JAN code |
|---|---|---|---|
| AD-5635 | INR5700 | AD5635 | 4981046156493 |
"Trivia of Radiation Thermometer" document download
You can download a pdf document that summarizes "bits of knowledge about radiation thermometers" posted at the bottom of the page for free.

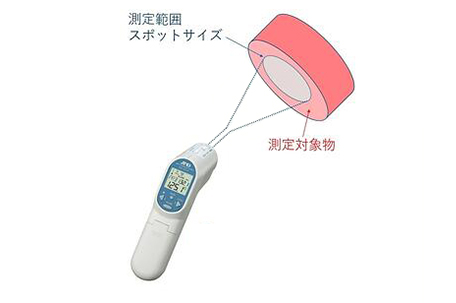

Limitations on the minimum measuring range (size) of radiation thermometers
A radiation thermometer has a measuring range. If the object to be measured is smaller than the measuring range, an accurate temperature…
read more

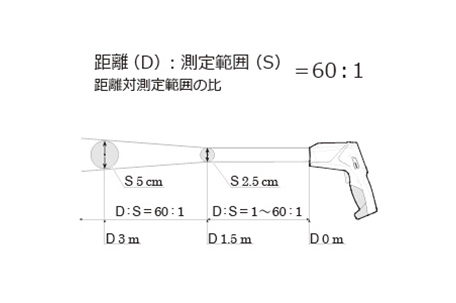

Relationship between radiation thermometer measurement distance and measurement range
The distance to the object to be measured (D: Distance) and the diameter of the measurement range (S:…
read more
How to choose a radiation thermometer based on its minimum measurement range and D:S ratio
The radiation thermometer that you purchase varies depending on the size of the object and the distance from the object to be measured.
read more

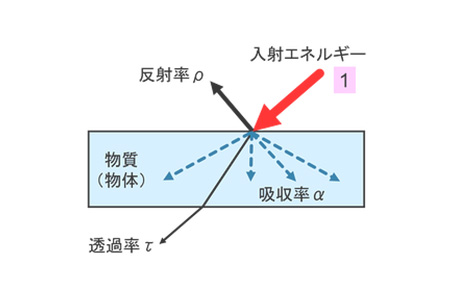

About emissivity
A radiation thermometer uses an infrared sensor to detect the amount of infrared energy radiated from the surface of a substance, and...
read more
How to set the emissivity
In order to correctly measure the temperature of the surface of a material with a radiation thermometer, the radiation thermometer must be set according to the emissivity of the material.
read more
Measurement of air temperature with a radiation thermometer
Is it possible to measure air temperature with a radiation thermometer? From the conclusion, air with a radiation thermometer ...
read more
Measurement of temperature of water and glass by radiation thermometer
Is it possible to measure the temperature of water/glass with a radiation thermometer? Because water and glass are colorless and transparent...
read more

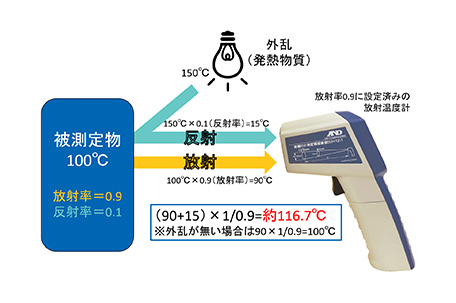

Precautions when measuring with a radiation thermometer
When measuring temperature with a radiation thermometer, it is necessary to set the emissivity of the object to be measured correctly, as well as the surrounding environment.
read more
Water temperature measurement using a radiation thermometer
Have you ever been conscious of the water temperature when fishing? Fish are sensitive to even a 1°C change in water temperature...
read more

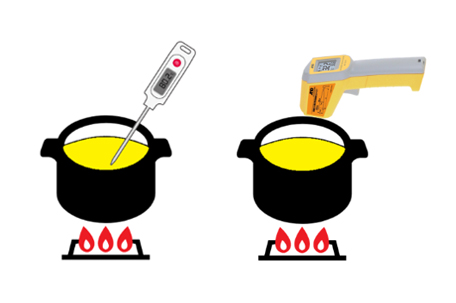

Advantages and disadvantages of contact and non-contact thermometers
Thermometers are broadly divided into two types: non-contact (radiation) thermometers and contact thermometers. Radiation thermometer…
read more
Temperature measurement during cooking with a radiation thermometer
When cooking deep-fried or stir-fried food, you probably also pay attention to the temperature of the oil and frying pan...
read more
Temperature measurement during asphalt pavement using a radiation thermometer
In the civil engineering and construction industry, temperature control is required during road construction in order to improve quality and durability.
read more
Temperature measurement when receiving raw materials in HACCP
When receiving raw materials, it is necessary to check the condition of the ingredients without fail. Corrupt...
read more
| Measurement Range | -38.0°C to +365°C |
| Minimum Display | 0.1°C |
| Response Speed | About 1 second (90%) |
| Response Wavelength | 5 µm to 14 µm |
| Accuracy (At Ambient Temperature 23°C ±3°C) | ±2.5% or ±2.5℃, whichever is greater (0 to 365℃) ±(2.5+0.05×absolute value of displayed value)℃ (-38 to 0℃) |
| Reproducibility (Repeatability) | 0.2°C for 25°C, 0.8°C for other measurement ranges |
| Emissivity Setting | Select from 0.95 / 0.70 / 0.30 (0.95 when shipped from the factory) |
| Measurement Distance: Measurement Range | Measurement Distance (D): Measurement Range (S) = 12:1 |
| Minimum Measuring Range | Φ23mm |
| Laser Marker | Class 2 (JIS C 6802), laser wavelength 635-660nm, output power less than 1mW (marker off possible) |
| Auto Power Off | About 15 seconds |
| Operating Temperature and Humidity Range | 0 to 50°C, 80% RH or less (no condensation) |
| Battery/Battery Life | 2 AAA batteries / 14 hours or more (alkaline batteries, continuous use) |
| External Dimensions/Mass | 40 (W) x 162 (H) x 115 (L) / Approx. 170g (including batteries) |
| Material | ABS resin (body) |
| Accessories | Battery (for monitor), instruction manual |
 |
 |
 |
 |
