AD5763-150

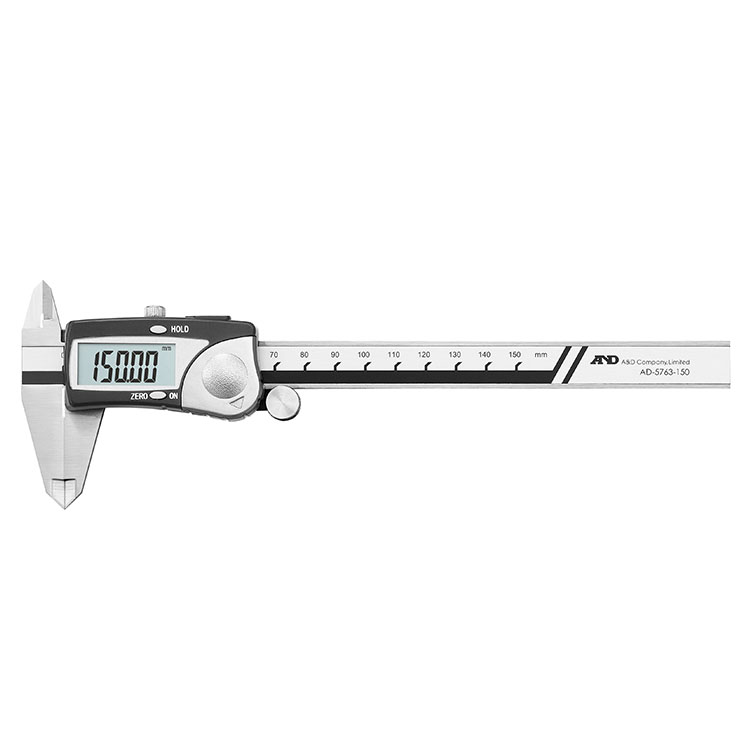

Drip-proof digital caliper AD-5763 series
Splash proof
- High-speed response, maximum response speed 3m/s
- Smooth sliding performance without unevenness
- Drip-proof structure equivalent to IP54. Even if it gets wet, it works normally by wiping it dry.
- Since it has a thumb roller, it can be rolled to make fine adjustments.
- With data hold function and auto power off function
Additional Links
| type name | standard price | Product code | JAN code |
|---|---|---|---|
| AD-5763-150 | ¥7,900 (excluding tax) | AD5763-150 | 4981046466042 |
| AD-5763-200 | ¥11,500 (excluding tax) | AD5763-200 | 4981046467155 |
| AD-5763-300 | ¥14,000 (excluding tax) | AD5763-300 | 4981046467162 |

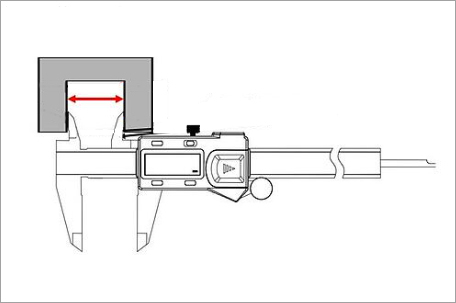

Four measurement methods of vernier calipers
When measuring with a digital caliper, if you do not use the correct method, you will get an error in the result...
read more

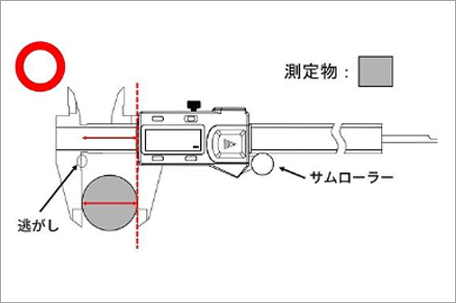

Correct use of vernier calipers
Digital vernier calipers can measure various lengths, but it depends on where you want to measure.
read more
Indirect measurement and comparative measurement using digital calipers
When using a digital caliper, by using the zero reset, you can measure in addition to direct measurement...
read more

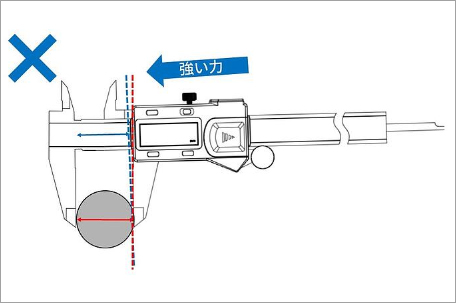

Vernier caliper error factors
When using vernier calipers, errors may occur in the results. There are various error factors...
read more
| Measurement range | AD-5763-150: 0 to 150 mm AD-5763-200: 0 to 200 mm AD-5763-300: 0 to 300 mm |
| Minimum display value |
|
| instrumental error | ±0.02mm (0 to 150mm range) ±0.03mm (150mm or more range) |
| Repeatability |
|
| Maximum response speed |
|
| power supply |
|
| Material | Jaw/Main scale: SUS 420J2 Display part: ABS |
| accessories |
|
| type name | AD-5763-150 | AD-5763-200 | AD-5763-300 |
|---|---|---|---|

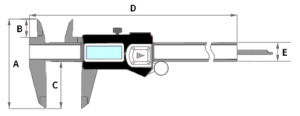

| External dimensions (mm): A | 77 | 88 | 102 |
| External dimensions (mm): B | 16 | 19 | twenty three |
| External dimensions (mm): C | 40 | 50 | 60 |
| External dimensions (mm): D | 236 | 285 | 390 |
| External dimensions (mm): E | 16 | 16 | 16 |
| External dimensions (mm): Thickness of outer jaw | 3.5 | 3.5 | Four |
| mass (g) | 165 | 195 | 275 |
| depth bar | 〇 | 〇 | 〇 |
