AD5764-200

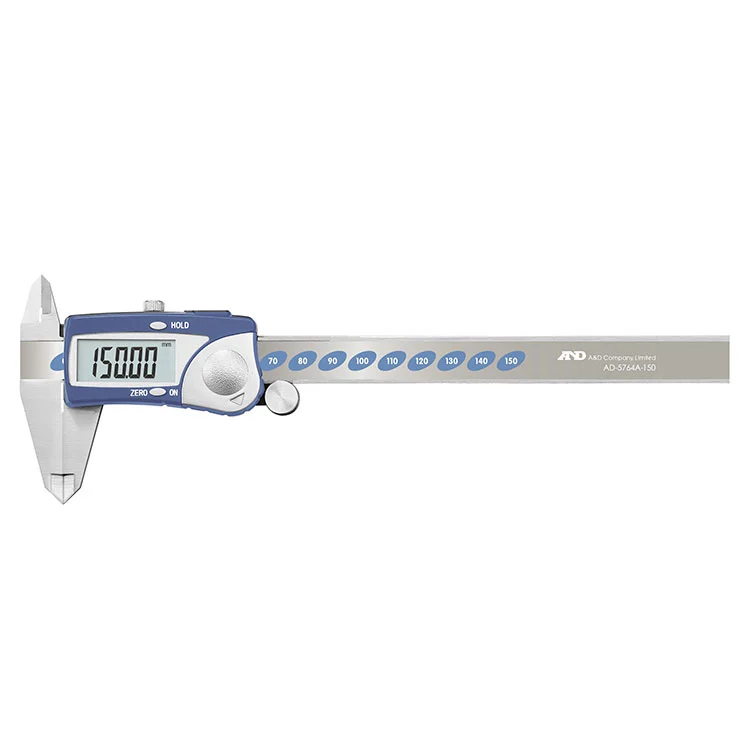

Digital caliper AD-5764A series
- High-speed response <maximum response speed 3m/s>
- Smooth sliding performance without unevenness
- Data hold function, auto power off function
- Since it has a thumb roller, it can be rolled to make fine adjustments.
| type name | standard price | Product code | JAN code | remarks |
|---|---|---|---|---|
| AD-5764A-150 | INR 6,200 | AD5764A-150 | 4981046467179 | - |
| AD-5764A-200 | INR 9,500 | AD5764A-200 | 4981046467186 | - |
| AD-5764A-300 | INR 13,500 | AD5764A-300 | 4981046467193 | - |
Four measurement methods of vernier calipers
When measuring with a digital caliper, if you do not use the correct method, you will get an error in the result...
read more
Correct use of vernier calipers
Digital vernier calipers can measure various lengths, but it depends on where you want to measure.
read more
Indirect measurement and comparative measurement using digital calipers
When using a digital caliper, by using the zero reset, you can measure in addition to direct measurement...
read more
Vernier caliper error factors
When using vernier calipers, errors may occur in the results. There are various error factors...
read more
| Measurement range | AD-5764A-100: 0 to 100 mm AD-5764A-150: 0 to 150 mm AD-5764A-200: 0 to 200 mm AD-5764A-300: 0 to 300 mm |
| Minimum display value |
|
| instrumental error |
|
| Repeatability |
|
| power supply | AD-5764A-100: 1 SR44 button battery AD-5764A-150: 1 CR2032 lithium battery AD-5764A-200: 1 CR2032 lithium battery AD-5764A-300: 1 CR2032 lithium battery |
| battery life |
|
| Material | Jaw/Main scale: Equivalent to SUS 420J2 Display part: ABS |
| body dimensions | AD-5764A-100: about 167 (L) x 60 (W) x 14 (H) mm AD-5764A-150: about 235 (L) x 76 (W) x 15 (H) mm AD-5764A-200: Approximately 287 (L) x 90 (W) x 15 (H) mm AD-5764A-300: Approximately 390 (L) x 102 (W) x 15 (H) mm AD-5764A-300: 1 CR2032 lithium battery |
| Body mass | AD-5764A-100: Approx. 95g (including batteries) AD-5764A-150: Approx. 162g (including batteries) AD-5764A-200: Approx. 190g (including batteries) AD-5764A-300: Approx. 274g (including batteries) |
| accessories |
|
| type name | AD-5764A-100 | AD-5764A-150 | AD-5764A-200 | AD-5764A-300 |
|---|---|---|---|---|
| External dimensions (mm): A | 60 | 76 | 90 | 102 |
| External dimensions (mm): B | 14 | 16 | 20 | twenty two |
| External dimensions (mm): C | 30 | 40 | 50 | 60 |
| External dimensions (mm): D | 167 | 235 | 287 | 390 |
| External dimensions (mm): E | 13 | 16 | 16 | 17 |
| External dimensions (mm): Thickness of outer jaw | 3 | 3.5 | 3.2 | Four |
| mass (g) | 90 | 162 | 190 | 274 |
| depth bar | ○ | ○ | ○ | ○ |
*Illustration is an image
