AD-5765A-150

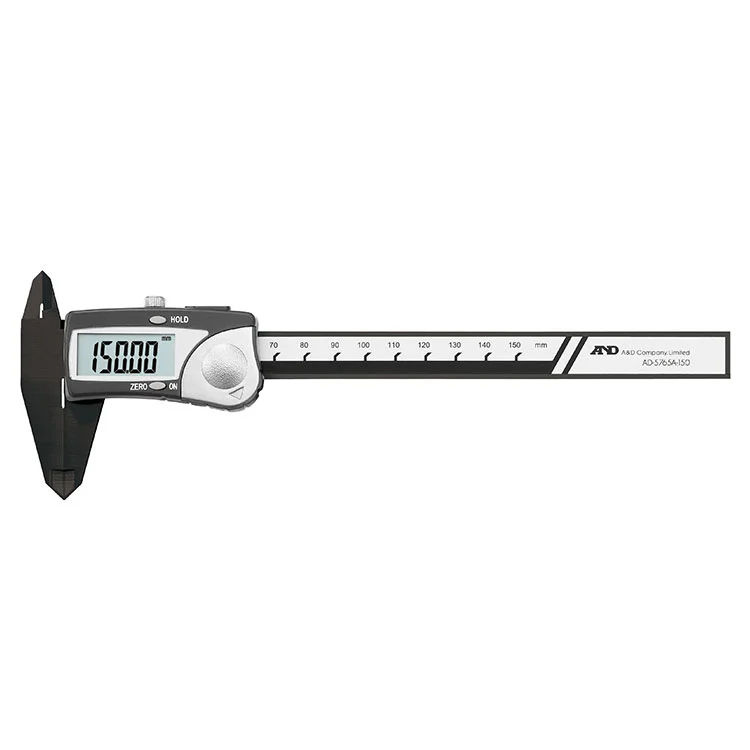

Plastic vernier caliper AD-5765A-150
- Plastic type that does not easily damage the measuring object
- Lightweight, safe and convenient to carry
- Jaw and body are reinforced with fiber-filled plastic
- With data hold function
| type name | standard price | Product code | JAN code |
|---|---|---|---|
| AD-5765A-150 | INR 2,600 | AD5765A-150 | 4981046466073 |
Four measurement methods of vernier calipers
When measuring with a digital caliper, if you do not use the correct method, you will get an error in the result...
read more
Correct use of vernier calipers
Digital vernier calipers can measure various lengths, but it depends on where you want to measure.
read more
Indirect measurement and comparative measurement using digital calipers
When using a digital caliper, by using the zero reset, you can measure in addition to direct measurement...
read more
Vernier caliper error factors
When using vernier calipers, errors may occur in the results. There are various error factors...
read more
| Measurement range | 0-150mm |
| Minimum display value | 0.01mm |
| instrumental error | ±0.2mm |
| Repeatability | ±0.1mm |
| power supply | 1 CR2032 lithium battery Battery life: about 1 year |
| Material | Body: Polycarbonate, Display: ABS |
| accessories | Plastic case, battery for monitor, instruction manual |
| External dimensions (mm): A | 77 | External dimensions (mm): B | 16 |
| External dimensions (mm): B | 40 | External dimensions (mm): D | 236 |
| External dimensions (mm): E | 16 | External dimensions (mm): Thickness of outer jaw | 3.2 |
| mass (g) | 50 | depth bar | - |
