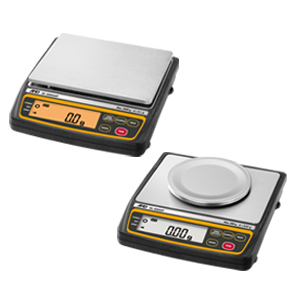

EK-AEP Series

Intrinsically Safe Compact Balances

Stay safe, stay connected, stay productive

  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
Additional Links
Model EK-300AEP EK-3000AEP EK-12KAEP
Capacity 300 g 3000 g 12 kg
Readability 0.01 g 0.1 g 1 g
Weighing pan Ø110 mm 133 × 170 mm
  • Compact, lightweight and extremely affordable while providing excellent explosion protection
  • Equipped with an optical connector for data output via optical fiber cable and an AD-1611 optical communication adapter.*1
  • Battery operation*2 (approx. 250 hours) for optimal portability without the need for complicated wiring via a safety barrier
  • GMP/GLP compliant output to meet documentation requirements
  • Easy-to-read LCD display with backlight (16 mm character height)
  • Auto power OFF function to save battery power
  • Hygienic and chemically resistant stainless steel (SUS304) weighing pan
  • Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, gr, N, in addition to SG (specific gravity)*3
  • Counting mode with Automatic Counting Accuracy Improvement (ACAI) functionality
  • Percent mode function for target weighing, checking the sample variation, etc.
  • Comparator function for faster and more accurate filling, packing, sorting, etc.
  • Response characteristics adjustable depending on the degree of drafts and vibrations at the location
  • Security ring for wire-locking the balance to prevent theft

    *1 Both sold separately
    *2 To be used only with four DURACELL AA alkaline MN1500 LR6, ENERGIZER AA E91 alkaline LR6 AM3, or Panasonic AA alkaline LR6 (XJ) 1.5V batteries.
    *3 Either tl (tael) or tol (tola) can be added upon request.

    Explosion protection markings
    IECEx:                           Ex ia op is IIB T3 Ga
    ATEX:                             II 1G Ex ia op is IIB T3 Ga
    FM/FMc (NEC505):   Class I, Zone 0, AEx/Ex ia op is IIB T3
    FM/FMc (NEC500):    IS / I / 1 / C,D / T3C
                                           Tamb -25 to +40℃
  • AD-1611: Optical communication adapter for data output
  • AX-KS5456-010: Optical fiber cable (10 m)
  • AX-KS5456-030: Optical fiber cable (30 m)
  • AX-KS5456-060: Optical fiber cable (60 m)
