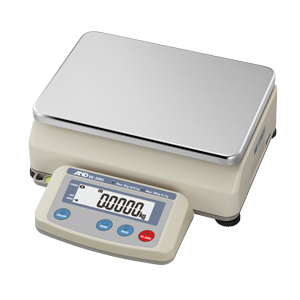

EK-L Series (Capacity : 15 kg to 30 kg / Readability : 0.1 g to 1 g)

Precision Bench Scales

  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
Optional
  • Series Img
Model EK-15KL EK-30KL
Capacity 15 kg 3 kg / 30 kg*
Readability 0.1 g 0.1 g / 1 g
Weighing pan 300 × 210 mm

* Smart range function: The readability will switch to 1 g when the display value exceeds 3 kg but returns to 0.1 g by pressing the Re-Zero key.

  • EK-15KL: Ideal for use where large capacity and high readability are simultaneously required
  • EK-30KL: Especially useful when the gross weight exceeds 15 kg, yet 0.1 g readability is necessary to measure the net weight
  • Large (300 × 210 mm) weighing pan for efficient measurements of bulky objects or quantities
  • Hygienic and scratch-resistant stainless steel (SUS430) weighing pan cover
  • Easy-to-read LCD display with clear, white backlight (22 mm character height)
  • RS-232C interface as standard
  • GLP/GMP/GCP/ISO compliant output
  • Multiple weighing units: g, kg, oz, lb, ozt (tael can be added upon request)
  • Counting mode with Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function
  • Comparator function
  • Display hold function
  • Operation with either AC adapter or optional rechargeable battery
  • Auto power OFF function
  • Battery life indicator
  • Security ring for wire-locking the scale to prevent theft
  • RS-232C interface
  • AD-1688 : Weighing data logger
  • AD-8118C : Universal printer
  • AD-8127 : Compact printer
  • AD-8526 : RS-232C/Ethernet (TCP/IP) converter
  • AD-8527 : Quick USB adapter
  • AD-8920A : Remote display
  • AD-8922A : Remote controller
  • AX-USB-9P : RS-232C/USB converter with cable
  • AX-KO2466-200 : RS-232C cable (9P-9P, 2 m)
  • AX-KO2466-500 : RS-232C cable (9P-9P, 5 m)
  • HC-02i : Sealed lead acid rechargeable battery (6 V, 4 Ah)
