A&D > Weighing > FC-i/FC-Si Series (Capacity : 500 g to 50 kg / Readability : 0.00005 g to 0.05 g)

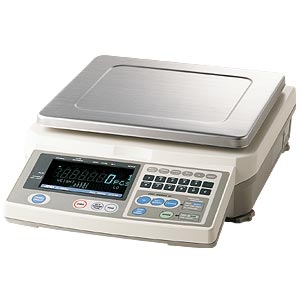

FC-i/FC-Si Series (Capacity : 500 g to 50 kg / Readability : 0.00005 g to 0.05 g)

Counting Scales

  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
Optional
  • Series Img
Additional Links
Model FC-500Si FC-5000Si
Minimum unit weight Normal mode 0.001 g 0.01 g
Fine mode 0.00005 g 0.0005 g
Capacity 500 g 5000 g
Readability 0.02 g 0.2 g
Maximum count display 9,999,999
Number of samples 10 pieces (5, 25, 50, 100 or at random setting)
Weighing pan 128 mm × 128 mm 165 mm × 165 mm
Model FC-500i FC-1000i FC-2000i FC-5000i FC-10Ki FC-20Ki FC-50Ki
Minimum unit weight Normal mode 0.01 g 0.02 g 0.04 g 0.1 g 0.2 g 0.4 g 1 g
Fine mode 0.0005 g 0.001 g 0.002 g 0.005 g 0.01 g 0.02 g 0.05 g
Capacity 500 g 1 kg 2 kg 5 kg 10 kg 20 kg 50 kg
Readability 0.05 g 0.1 g 0.2 g 0.5 g 1 g 2 g 5 g
Maximum count display 1,000,000
Number of samples 10 pieces (5, 25, 50, 100 or at random setting)
Weighing pan 205 mm × 152 mm 300 mm × 280 mm
  • Beginner-friendly, Unit Weight Registering Navigator
  • Automatic Counting Accuracy Improvement (ACAI) function
  • Large memory for 500 items
  • High internal readability (FC-Si: 1/10,000,000 FC-i: 1/1,000,000) for extremely accurate counting
  • Removable stainless steel weighing pan
  • Two scale counting system using the optional remote scale interface
  • Simple operation mode to avoid making any unwanted operational mistakes
  • Customizable printing format with the Universal Flexi Coms (UFC) function (Relevant Software: WinCT-UFC)
  • Accumulation (M+) function for counting
  • Comparator function with buzzer
  • Large, bright vacuum fluorescent display
  • Built-in rechargeable battery pack (optional)
FC-i / FC-Si Series High-Performance Counting Scales Pt1 | A&D
FC-i / FC-Si Series High-Performance Counting Scales Pt2 | A&D
A&D Introducing Windows UFC Setting Tools, "WinCT-UFC"
  • RS-232C interface with up to 3 channels (1 standard + 2 optional)
  • Comparator relay output (optional)
  • Interface for a remote scale (optional)
  • FC-02i: Built-in rechargeable battery pack (Ni-MH)
  • FC-03i: RS-232C × 2ch
  • FC-04i: RS-232C × 1ch/Comparator relay output
  • FC-05i: Interface for a remote scale

    * FC-03i and FC-04i cannot be used at the same time.
