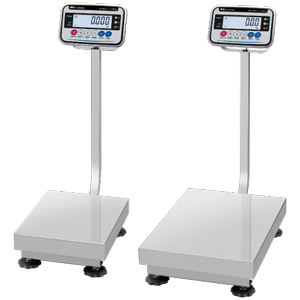

FG-CWP Series
Waterproof Platform Scales
Weigh efficiently, and wash effectively
Optional
Additional Links
| Model | FG-30KCMWP | FG-60KCLWP | FG-150KCLWP |
| Capacity | 30 kg | 60 kg | 150 kg |
| Readability | 0.01 kg | 0.02 kg | 0.05 kg |
| 0.005 kg*7 | 0.01 kg*7 | 0.02 kg*7 | |
| 0.002 kg | 0.005 kg | 0.01 kg | |
| 0.001 kg | 0.002 kg | 0.005 kg | |
| Weighing pan | 300 mm × 380 mm | 370 mm × 500 mm | |
*7 Factory setting
- All stainless steel construction*1
- IP67 dust & waterproof
- Cleanable with alcohol*2*3
- High-speed measurement of 1 second*4
- Bright and multi-colored LED comparator lights
- Auto-tare and negative comparison functions for "take-away" check weighing
- USB cable (3 m) to be connected to either an AC adapter (provided as standard), a USB port of a PC, or an off-the-shelf mobile battery*5
- Power supply and data communication both at the same time when connected to a PC
- Highly-visible, LCD display (30 mm character height) with white backlight
- Four selectable weighing resolutions
- Impact shock detection (ISD) to prevent error and damage to the load cell
- Adjustable response characteristics
- GMP/GLP compliant output to meet documentation requirements
- Display hold function
- Counting mode function
- Auto power ON and OFF functions
- Freely adjustable display angle
- Password lock and key restriction functions
*1 Display unit, weighing pan, pole and frame: SUS304
Load cell: SUS420J-2 with protective coating
*2 Alcohol diluted to 70% or less
*3 For the display unit (including the front panel), weighing pan, pole and frame
*4 Typical when the readability is set to normal (factory setting)
*5 For reference, continuous operation time with an off-the-shelf mobile battery (10,000 mAh) is estimated to be approx. 77 hours with backlight on.
- USB interface
- Bluetooth® interface (optional)
- FG-27CWP : Bluetooth® communication interface for FG-CWP*6
Manual (PDF 274 KB)
*6 Please contact your local A&D representative to find out whether FG-27CWP is certified for compliance with Bluetooth® communication laws in your country.
