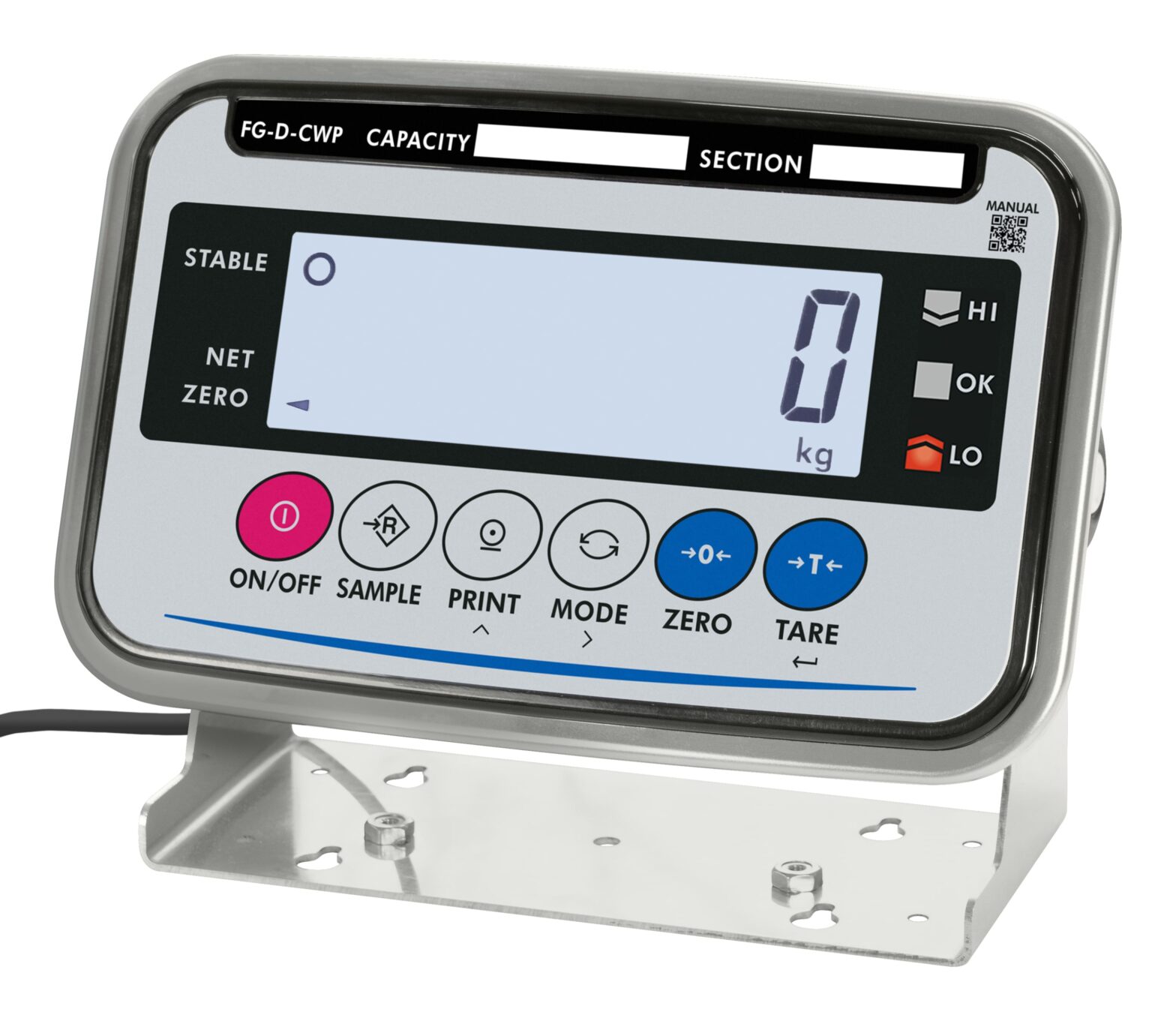

FG-D-CWP / FG-D-ACWP

Affordable stainless steel indicator ideal for building various types of waterproof scales

IP67 dust & waterproof, alcohol cleanable*1, stainless steel (SUS304) construction
Drive capacity of up to four 350 Ω load cells with a remote sensing function
Freely configurable capacity and scale division (max. display resolution: 1/100,000)
Clearly-visible, large LCD digits (30 mm character height) with white backlight
Bright and multi-colored LED comparator lights for intuitive HI/OK/LO judgments
Auto-tare and negative comparison functions for "take-away" check weighing
Power supply from either the provided AC adapter, USB port on another device, or off-the-shelf mobile battery via USB cable (3 m) (FG-D-CWP)
Capable of both data communication and power supply at the same time when connected to a PC (FG-D-CWP)
AC mains with 3-meter cable, which is long enough to connect the AC plug to an outlet away from the wet area or to a socket hanging from the ceiling (FG-D-ACWP)
Stand for setting the indicator on the floor or up on a wall at an arbitrary angle
Adjustable response characteristics
Multiple units of measure: kg, g, lb, oz, t and pcs (for counting mode)
GMP/GLP compliant output to meet documentation requirements
Display hold function
Counting mode function
Auto power ON and OFF functions
Password lock and key restriction functions

*1 Alcohol diluted to 70% or less

USB interface (FG-D-CWP) Bluetooth® interface (optional)

Options
FG-27CWP : Bluetooth® communication interface for FG-CWP/FG-ACWP^2 Manual (PDF 750 KB) 2 Please contact your local A&D representative to find out whether FG-27CWP is certified for compliance with Bluetooth® communication laws in your country.
