A&D > Weighing > FS-i Series

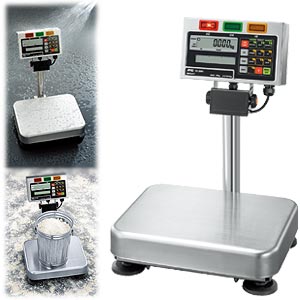

FS-i Series
IP65 Dust and Waterproof Checkweighing Scales
High-speed Weighing & High-speed Judgment!
Optional
Additional Links
| Model | Capacity | Readability (Selectable by user) |
Pan Size (mm) W x D |
| FS-6Ki | 6 kg | 0.002 kg 0.001 kg 0.0005 kg |
250 x 250 |
| FS-15Ki | 15 kg | 0.005 kg 0.002 kg 0.001 kg |
250 x 250 |
| FS-30Ki | 30 kg | 0.01 kg 0.005 kg 0.002 kg |
380 x 300 |
| Input sensitivity | 0.2 µV / d (d: the smallest readability of kg) |
| Input signal range | 0 mV to 13 mV |
| Load cell excitation voltage | DC 5V ± 5% (no remote sensing) |
| Load cell drive capacity | Up to four 350 Ω load cells |
| Temperature coefficient | Zero: ±(0.2 µV ± 0.001% of zero adjustment voltage) / °C (typ.) Span: ±0.001% / °C of reading (typ.) |
| Linearity | ±0.01% of full scale |
- Ultra high-speed weighing with 0.5-second stabilization
- Distinct tricolor LEDs for fast and error-free comparator judgment
- Take-away checkweighing using the auto-tare function
- Washable and hygienic stainless steel (SUS304) display unit and weighing pan
- Waterproof and corrosion-resistant load cell*
- Fast data acquisition with a refresh rate of 20 times/second
- Large memory of 100 comparator settings
- 60-segment analog sweep (horizontal bar) display for intuitive filling control
- Simple operation mode to prevent accidental changes to the settings
- Sealed Lead Acid (SLA) rechargeable battery for approx. 80 hours operation (optional)
- The display unit available separately as an indicator for check weighing scales (FS-D)
- Universal Flexi Coms (UFC) function to edit serial data output/printout format (Relevant Software: WinCT-UFC)
* Aluminum anodized and coated with epoxy resin with protective silicon over wiring
FS-D
FS-i Series / FS-D IP65 Dust and Waterproof Checkweighing Scales from A&D
A&D Introducing Windows UFC Setting Tools, "WinCT-UFC"
- RS-232C + comparator relay output (optional)
- RS-422/485 + comparator relay output (optional)
