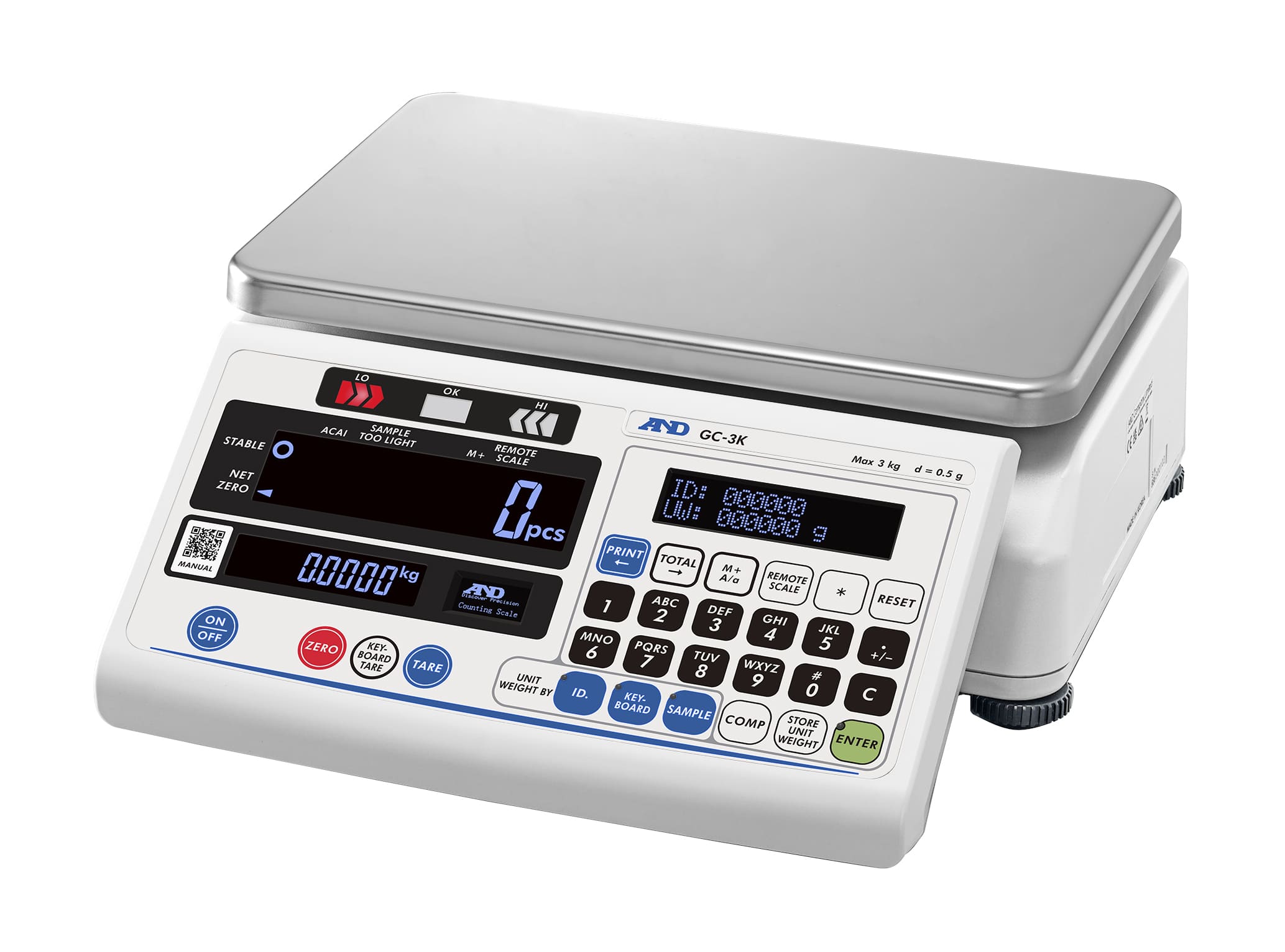

GC Series

Counting Scales

Today’s counting solutions, only from A&D.

PDF PDFBrochure (PDF 5.9 MB)
PDF PDFManual (PDF 3.7 MB)
PDF PDFQuick Start Guide (PDF 2.8 MB)
PDF PDFConnection with Remote Scales (PDF 389 KB)

 Dedicated software WinCT-Counting
Consisting of four useful modes, this software lets users perform various tasks easily on a PC to enable more effective use of counting scales.

Model GC-3K GC-6K GC-15K GC-30K
Minimum unit weight*5 Normal mode 0.1 g 0.2 g 0.4 g 1 g
Fine mode 0.005 g 0.01 g 0.02 g 0.05 g
Capacity 3 kg 6 kg 15 kg 30 kg
Readability 0.0005 kg 0.001 kg 0.002 kg 0.005 kg
Number of samples 5, 10, 25, 50, 100, or an arbitrary number of pieces
Weighing pan 310 mm × 210 mm

*5 Selectable by internal setting

  • Automatic Item Search (AIS)*1 to instantly find a desired unit weight
  • Large internal memory to store data for up to 1,000 items
  • WinCT-Counting (freeware) for easy management of item data
  • Unit weight backup
  • Memory capacity extension using a MicroSD card
  • Three reverse-backlit LCD displays for count, weight, and unit weight data, and one OLED information display
  • Information display also acting as a simplified guide for internal settings
  • Diverse methods of unit weight setting
  • Unit weight entry navigator
  • Selectable power sources including mobile battery via USB cable
  • Separable display unit
  • RS-232C interface that supports digital connection with an A&D balance/scale
  • Expanded scope of application using the AD-8561 series of Multi-Interfaces (sold separately)
  • Comparator function with highly-visible LED traffic lights and buzzer
  • Automatic Counting Accuracy Improvement (ACAI)
  • Adjustable response characteristics
  • Stabilization of approx. 1 second (typical)*2
  • Universal Flexi Coms (UFC) to customize printout content and layout
  • Auto power ON and OFF functions
  • Password lock and key lock functions
  • External input terminal

    *1 Patent pending
    *2 By default settings, the stabilization time is approx. 1.6 seconds.

RS-232C interface
Multi-Interfaces (optional)

AD-8561-MI02: Multi-Interface incl. USB (Type-micro B)     PDFManual (PDF 8.8 MB)
AD-8561-MI04: Multi-Interface incl. Terminal (4-pin) block     PDFManual (PDF 8.8 MB)
AD-8561-MI05: Multi-Interface incl. Terminal (7-pin) block     PDFManual (PDF 1.9 MB)
AD-8561-11: Terminal block cover*3
AX-KO1371-200: Crossover RS-232C cable (2 m)
AX-KO7215-150: USB cable for power supply (1.5 m)*4

*3 Provided as standard for the AD-8561-MI05 and can also be used for the AD-8561-MI04
*4 Provided as standard for the GC series

GC-08: Extension cable (2 m)
GC-14: Brackets for AD-8561 and cable
