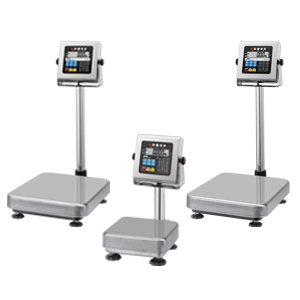

HV/HW-CWP Series
Waterproof Platform Scales
Weighing at the Speed of Lights in tough environments
Optional
Additional Links
| Model | HV-15KCWP | HV-60KCWP | HV-200KCWP | ||||||
| Capacity | 3 kg | 6 kg | 15 kg | 15 kg | 30 kg | 60 kg | 60 kg | 150 kg | 220 kg |
| Readability | 0.001 kg | 0.002 kg | 0.005 kg | 0.005 kg | 0.01 kg | 0.02 kg | 0.02 kg | 0.05 kg | 0.1 kg |
| Weighing pan | 250 mm × 250 mm | 330 mm × 424 mm | 390 mm × 530 mm | ||||||
| Model | HW-10KCWP | HW-60KCWP | HW-100KCWP | HW-200KCWP |
| Capacity | 10 kg | 60 kg | 100 kg | 220 kg |
| Readability | 0.001 kg | 0.005 kg | 0.01 kg | 0.02 kg |
| Weighing pan | 250 mm × 250 mm | 330 mm × 424 mm | 390 mm × 530 mm | |
- IP65 dust & waterproof with stainless steel (SUS304) surface
- High-speed measurement—response in 1 second or less (typical for the HV-CWP series)*1*2
- Bright and multi-colored 5-step LED comparator lights
- Auto-tare and negative comparison functions for "take-away" check weighing
- Highly-visible, LCD display (26 mm character height) with white backlight
- Quick and easy settings using the alphanumeric keypad
- Key lock function to prevent operators from making changes to the scale settings
- Optional roller conveyers for weighing in production lines
- Wide selection of capacities and readabilities
- Two slots for optional data communication interfaces
- GMP/GLP compliant output to meet documentation requirements
- Universal Flexi Coms (UFC) function to edit serial data output/printout format
- Display hold function
- Counting mode function
- Accumulation (M+) function
- Auto power on function
- Freely adjustable display angle
- Detachable display unit (optional holder is required)
*1 Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
*2 With the HW-CWP series, response typically takes not 1.5 seconds.
- USB interface (optional)
- RS-232C interface (optional)
- Comparator relay output/buzzer interface (optional)
- AD-1612 : Comparator buzzer
- AD-8127 : Compact printer
- AD-8526 : RS-232C/Ethernet (TCP/IP) converter
- AD-8922A : Remote controller
- AX-KO3285-320 : RS-232C cable for PC and AD-8127 (D-Sub 9P, 3 m)
- AX-043005266 : Display unit holder
- AX-KO6430-5M : Waterproof extension cable (5 m)*4
- AX-TMBOXTS-6 : Waterproof junction box*4
*4 Recalibration is required after connecting the extension cable via the junction box.
How to Extend Load Cell Cable (PDF 230 KB)
- HVW-02BCWP : USB interface (bi-directional, type mini-B)*3
- HVW-03CWP : RS-232C interface (terminal block)
- HVW-04CWP : Comparator relay output/buzzer interface
- HVW-27CWP : Bluetooth® communication interface for HV/HW-CWP
- Manual (PDF 216 KB)
- HVW-13 : Large roller conveyer (for the 100 to 200 kg capacity models)
- HVW-14 : Medium-size roller conveyer (for the 60 kg capacity models)
*3 Driver software needs to be installed on the PC. Please download it from here.
