| Rated output |
1mV/V or more |
| Safe load limit |
150% of R.C. |
| Combined error |
0.5% of R.O. |
| Recommended excitation voltage |
DC5 V |
| Maximum excitation voltage |
DC5 V |
| Zero balance |
±100% of R.O. |
| Input terminal resistance |
1 kΩ ± 0.1 kΩ |
| Output terminal resistance |
1 kΩ ± 0.01 kΩ |
| Insulation resistance |
500 MΩ / DC50 V |
| Compensated temperature range |
0 °C to 70 °C |
| Permissible temperature range |
-10 °C to 80 °C |
| Temperature effect |
Zero |
0.5% of R.O. / 10 °C Typ. |
| Span |
0.5% of Load / 10 °C Typ. |
| Cable diameter / Length |
φ2 mm / 2 m |
| Dustproof / Waterproof |
IP64 |

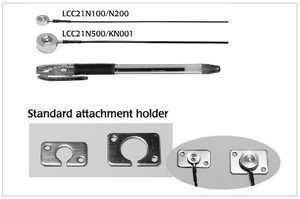

| Standard attachment holder |
1 piece |
