LCCU-21

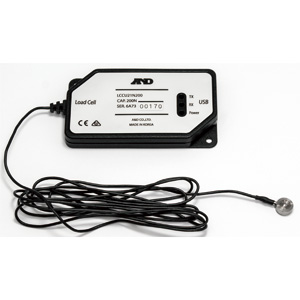

Small USB Button Load Cell for Force Measurement
Force Measurement Simplified!
Additional Links
| Model No. | LCCU21N100 | LCCU21N200 | LCCU21N500 | LCCU21KN001 | |
| Rated capacities | 100N (10.20kg) | 200N (20.39kg) | 500N (50.99kg) | 1kN (102.0kg) | |
| Rated output | 100.00 ± 0.50 (0.5%) | 200.00 ± 1.00 (0.5%) | 500.00 ± 2.50 (0.5%) | 1000.0 ± 5.0 (0.5%) | |
| Combined error | 0.5% of R.O. | ||||
| Power | Supply voltage | DC5V (USB bus power) | |||
| Average current consumption *1 | Less than 50mA | ||||
| Zero balance | ±2% of R.O. | ||||
| Temperature effect on zero | 0.6% of R.O. / 10°C | ||||
| Temperature effect on span | 0.6% of LOAD / 10°C | ||||
| Compensated temperature range | 0°C to 70°C | ||||
| Permissible temperature range | −10°C to 80°C | ||||
| Maximum safe overload | 150% of R.C. | ||||
| A/D conversion rate | 100 times / s | ||||
| Digital filter | Select from None, 0.7, 1.0, 1.4, 2.0, 2.8, 4.0, 5.6, 8.0, 11.0 Hz (default value: 1.0Hz) | ||||
| Resonance frequency *1, *2 | 45kHz | 55kHz | 30kHz | 35kHz | |
| Cables | From load cell to case: φ2mm, 2m length USB cable (accessory): φ4mm, 1.5m length | ||||
| Dustproof / waterproof *1, *2 | IP64 compliant | ||||
| Weight *3 | Approx. 50g | Approx. 55g | |||
| Communications standard | Conformant to USB Ver. 2.0 Full Speed | ||||
| USB connector | Micro-B type | ||||
| Communication settings |
Baud rate | 38400 bps | |||
| Character bit length | 8 bit | ||||
| Parity | Even | ||||
| Stop bit length | 1 bit | ||||
| Terminator | CR LF | ||||
| Code | ASCII | ||||
*1: Reference value *2: Load cell only *3: Main unit (load cell, cable, plastic case)
- Compact, lightweight force measurement load cell
- Load cell, A/D converter and USB interface
- Mounting holder
- External power supply not required
- High speed AD conversion

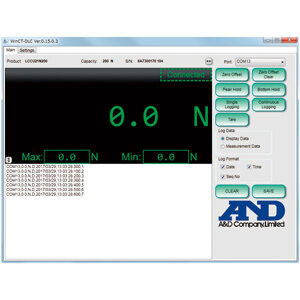

With one or more LCCU-21 Button Load Cells and a computer you can easily perform a variety of measurements by downloading the compressed “WinCT-DLC” file.
