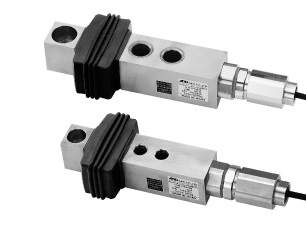

A&D LCM17 Series

Rated output		1.0 mV / V±0.1% (For 1 kN only, 0.5 mV / V±0.1%)
Safe load limit		150% of R.C.
Combined error		0.03% of R.O.
Recommended excitation voltage		DC5 to 12 V
Maximum excitation voltage		DC15 V
Zero balance		±2% of R.O.
Input terminal resistance		390 ± 30 Ω
Output terminal resistance		350 ± 5 Ω
Insulation resistance		5000 MΩ or higher / DC50 V
Compensated temperature range		-10 °C to 40 °C
Temperature effect	Zero	0.028% of R.O. / 10 °C
	Span	0.011% of Load / 10 °C Typ.
Insulation resistance		5000 MΩ at DC50 V
Cable diameter / length		φ7 / 5 m
Dust & Waterproof		IP54
Flameproof type		Exd II BT4

Suitable for use in harsh environments where flammable hazardous substances are handled and corrosion resistance is required.
Suitable for platform or tank scales.
For both tension and compression applications.
