MPB Series

When using the MPB series
When using a pipette that has not been used for a couple of hours we recommend aspirating and dispensing it prior to subsequent use. This will ensure smooth piston movement allowing for more precise dispensing.
Pipette Operation Guide ~ for accurate dispensing with pipettes ~
How can you dispense viscous or volatile samples more accurately? This document explains why such samples often lead to errors and effective countermeasures you can take for them. It also summarizes the MPA Series' resistance to organic solvents, etc.

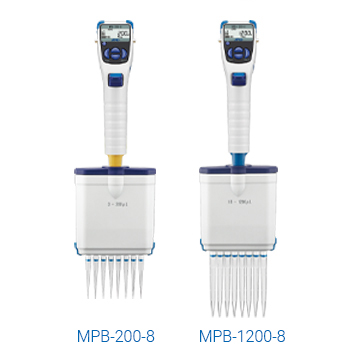

Model		MPB-200-8			MPB-1200-8
Capacity range		3.0 to 200 mL			15 to 1200 µL
Increment		1 µL
Performance^*6	Volume	10 µL	100 µL	200 µL	100 µL	600 µL	1200 µL
	Accuracy (±)	5.0%	2.4%	1.2%	5.0%	2.0%	1.0%
	Repeatability (CV)	2.0%	0.6%	0.3%	1.2%	0.6%	0.3%
Maximum number of multiple dispensings		5 µL × 40 times			15 µL × 80 times
Program memory		9 programs
Aspirating/dispensing speed		5 speeds
Length		Approx. 290 mm
Weight (including the battery)		Approx. 290 g			Approx. 280 g

*6 In standard (AUTO) mode with maximum aspirating and dispensing speeds

For daily and periodic checks of the MPA series, the AD-1690 leak tester and AD-4212B-PT/AD-4212A-PT/FX-300iPT pipette accuracy testers (or BM series + BM-014) are useful tools.

Accuracy/repeatability not dependent on human factors
Stress-minimized, pain-free operation using the forefinger
Individually detachable cylinders, enabling to change the number of channels (max. eight channels)^*1
Easy calibration (adjustment) with the User CAL function^*2*3
Calibration and display by either volume (μL/mL) or weight (mg)^*2
Accurate pipetting possible with other manufacturers’ tips
Dedicated glass tips and silicon adapters available
Multiple dispensing (MD) mode with automatic initial volume correction (pre-dispensing)
Mixing (MIX) mode for homogenizing solutions
Reverse operation for accurately dispensing viscous samples
Increased resistance to drop impacts with padding on the head^*2
Aspirating and dispensing speeds adjustable to 5 different levels each
Storage for up to 9 programs
High resistance to acid/organic solvents
Adjustable tip ejector reach
Extended finger hook
Power supply by either a rechargeable battery or switching (100-240V) AC adapter
Multiple AC adapter plugs (A, BF, C, S)
Auto power OFF function
*1 Patent pending
*2 Patented
*3 For verification of dispensed volumes necessary for calibration, the AD-4212B-PT/ AD-4212A-PT/ FX-300iPT pipette accuracy testers (or BM series + BM-014) are useful tools

Multiple dispense | The MPB Series Multiple Channel Electronic Pipettes from A&D

Replacement of MPB Series Lower Parts | The MPB Series Multiple Channel Electronic Pipettes from A&D

Replacing the cylinder unit | The MPB Series Multiple Channel Electronic Pipettes from A&D

Staged Dilution | The MPB Series Multiple Channel Electronic Pipettes from A&D

AX-BOX-200A : Tip box for the MPB-200-8^*4
AX-BOX-1200A : Tip box for the MPB-1200-8^*4
AX-BOX-200B : Tip box (no latch) for the MPB-200-8^*4
AX-BOX-1200B : Tip box (no latch) for the MPB-1200-8^*4

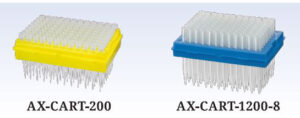

AX-CART-200 : Tip cartridge (96 sterile tips × 10 sets) for the MPB-200-8
AX-CART-1200-8 : Tip cartridge (96 sterile tips × 10 sets) for the MPB-1200-8
AX-LOW-200-8 : Lower part of the MPB-200-8
AX-CYL-200 : Cylinder unit for the MPB-200-8 (8 pcs)
AX-LOW-1200-8 : Lower part of the MPB-1200-8
AX-CYL-1200 : Cylinder unit for the MPB-1200-8 (8 pcs)

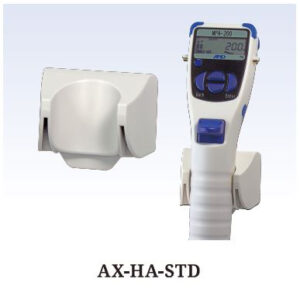

AX-HA-STD : Pipette hanger
AX-HA-CHG : Charging hanger
AX-ST-CH-A1 : Charging stand for single pipette
AX-ST-CH-M4 : Charging stand for four pipettes
AX-BAT-MPA : Lithium-ion rechargeable battery
AX-KO4730-10 : Linking cable (10 cm, for connection between charging hangers/stands)
AX-TB283 : AC adapter (A, BF, C and S plugs are included)^*5
AX-PAD-MPA : Pipette elbow cushion (NBR &smp; polyurethane, 4 sheets × 1 set)

*4 Tips are not included.
*5 AX-TB282 for the US
