MS-70/MX-50/MF-50/ML-50

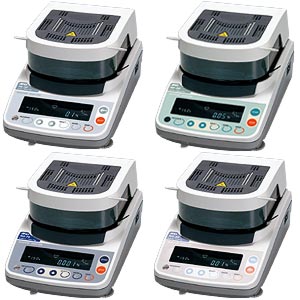

MS-70 / MX-50 / MF-50 / ML-50

TEST WITH THE BEST – Quick, Safe and Accurate

  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
  • Series Img
Additional Links
Model MS-70 MX-50 MF-50 ML-50
Measurement method 400 W straight halogen lamp heating system with SRA filter and SHS weighing technology
Maximum sample weight capacity 71 g 51 g
Readability Moisture content 0.001%/0.01%/0.1% 0.01%/0.1% 0.05%/0.1%/1% 0.1%/1%
Weight 0.0001 g 0.001 g 0.002 g 0.005 g
Repeatability
(Standard deviation)		 Moisture content (over 1 g) 0.05% 0.1% 0.2% 0.5%
Moisture content (over 5 g) 0.01% 0.02% 0.05% 0.1%
Weight 0.0005 g 0.001 g 0.002 g 0.005 g
Drying temperature 30 to 200 C° 50 to 200 C°
Measurement unit Wet base / Dry base / Dry content / Ratio / Weight
Sample pan size Ø85 mm

Note: Opening/closing the heater cover.

This instrument is a precision instrument. Open/close the heater cover gently when placing/removing a sample at the start/end of a measurement.

  • Low moisture content measurement at 10 ppm (0.001%) readability (MS-70)
  • Fast and uniform heating with halogen lamp and innovative Secondary Radiation Assist (SRA) technology
  • Accuracy verification with Sodium Tartrate Dihydrate (standard with MS-70, MX-50, and MF-50)
  • High repeatability with the Super Hybrid Sensor (SHS) technology
  • Calibration function for heating temperature (for MS-70 and MX-50 only)
  • Five different measurement programs
  • Selectable heating patterns
  • Translucent window enabling progress check
  • Memory function for measurement conditions
  • Large bright Vacuum Fluorescent Display
  • GLP/GMP/GCP/ISO compliant output
  • Quick reference card provided

    Windows Communication Tools WinCT-Moisture (standard with MS-70 and MX-50)

  • Displays moisture rate changes over time in a graph (RsFig)
  • Quickly and automatically suggests the most suitable heating conditions for first-time samples (RsTemp)
  • Calculates measurement data statistics
  • Saves the recorded data in CSV format
  • Detects other changes to the sample material in addition to moisture rate
  • Includes sample data summary
  • USB connection is also possible (AX-USB-25P)
A&D's Moisture Analyzers | MS-70 / MX-50 / MF-50 / ML-50
  • RS-232C interface
  • AX-MX-30 : Disposable aluminum pan (100 pcs)
  • AX-MX-31 : Sample pan (100 pcs)
  • AX-MX-32-1 : Filtration glass fiber sheet (100 sheets)
  • AX-MX-32-2 : Glass fiber sheet (100 sheets)
    PDFEffective Use of Various Aluminum Pans / Glass-Fiber Sheets (PDF)
  • AX-MX-33 : Sodium Tartrate Dihydrate (30 g × 12 pcs)
    PDFMaterial Safety Data Sheet (PDF)
  • AX-MX-34-120V : Halogen lamp (AC 100 to 120 V)
  • AX-MX-34-240V : Halogen lamp (AC 200 to 240 V)
  • AX-MX-35 : Pan handle (2 pcs)
  • AX-MX-36 : Tweezers (2 pairs)
  • AX-MX-37 : Spoon (2 pcs)
  • AX-MX-38 : Display cover (2 pcs)
  • AX-MX-39 : Dust cover
  • AX-MX-40 : RS-232C cable (25P-9P, 2 m)
  • AD1603-20F1 : Calibration weight (20 g), OIML Class F1
  • AX-MX-42 : WinCT-Moisture
  • AX-MX-43 : Temperature calibrator (for MS-70 and MX-50 only)
    PDFManual for AX-MX-43 (PDF)
  • AX-USB-25P : RS-232C/USB converter with cable
  • AD-1683 : Static eliminator
  • AD-1684A : Electrostatic field meter
