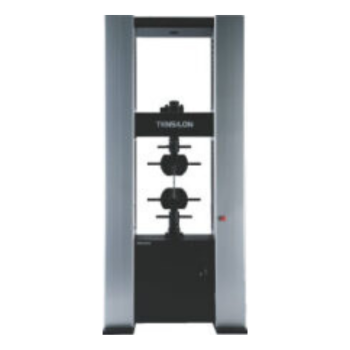

RTF Series TENSILON

Universal Material Testing Instrument

  • TENSILON RTF is our newest universal testing machine offering innovative measuring possibilities, based on A&D's newly-developed and extensive technological knowledge. The RTF Series is a world-class Class 0.5 testing machine. Having improved the overall design and structure of the machine, we achieved a very strong load frame stiffness enabling super-high accuracy in measurement. We also took the informed opinions of machine operators into consideration in order to improve the performance and functions of our model. The TENSILON RTF Series heralds the beginning of a new era in measurement.
Additional Links
  •   RTF-2430 RTF-2425 RTF-2410 RTF-2350 RTF-2325
    Loading System Closed-loop micro-computer controlled digital servo mechanism
    Maximum Capacity 300kN 250kN 100kN 50kN 25kN
    Test Width (mm) 590mm
    Crosshead Stroke (mm) 1370mm 1160mm 1180mm 1210mm
    Effective Stroke (mm) 625mm 720mm 798mm 828mm
    Crosshead Speed (mm/min) 0.0005 - 500mm/min 0.0005 - 1000mm/min
    Speed Accuracy ±0.1%
    Crosshead Return Speed (mm/min) 500mm/min or 250mm/min 1000mm/min or 500mm/min
    Load Measurement Accuracy ±1% of indicated value ±0.5% of indicated value
    Load Range Full Auto Range ( max. 128 times)
    Load Calibration One touch auto-calibration
    Safety Function for overloading Provided
    Sample Break Detection Provided
    Stroke Limiter 2 points Upper/Lower
    Sampling speed 1msec
    Weight 1300kg 780kg
  •   RTF-1350 RTF-1325 RTF-1310 RTF-1250 RTF-1225 RTF-1210
    Loading System Closed-loop micro-computer controlled digital servo mechanism
    Maximum Capacity 50kN 25kN 10kN 5kN 2.5kN 1kN
    Test Width (mm) 590mm 420mm
    Crosshead Stroke (mm) 1000mm 1100mm
    Effective Stroke (mm) 618mm 580mm 690mm 665mm 775mm
    Crosshead Speed (mm/min) 0.0005 - 1000mm/min
    Speed Accuracy ±0.1%
    Crosshead Return Speed (mm/min) 1000mm/min or 500mm/min
    Load Measurement Accuracy ±0.5% of indicated value
    Load Range Full Auto Range ( max. 128 times)
    Load Calibration One touch auto-calibration
    Safety Function for overloading Provided
    Sample Break Detection Provided
    Stroke Limiter 2 points Upper/Lower
    Sampling speed 1msec
    Weight 330kg 110kg
  •  A&D's world-class Class 0.5 testing machine
  • Load frame stiffness has been greatly improved by 30%
  • Rated output accuracy of up to 1/500 is guaranteed
  • High-speed sampling:1 msec
  • A maximum of 13 input signal channels
  • Color touch panel (optional)
  • Various operational environments
  • Color Touch panel
    The color touch panel offers superb visibility and easier operation.

    Either the color touch panel OP-01 or MSAT data processing software (on a personal computer) can be selected for user interface.

      Touch Panel MSAT Display Commander Recorder
    RTF with Touch panel OP-01 Optional Optional Optional Optional

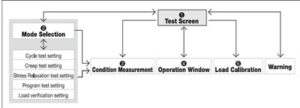

    Test Screen

    The main window for displaying a graph and starting a test

    Mode Selection

    Select testing mode

    Condition Measurement

    Setting test speed, such as constant crosshead speed and constant load increase speed

    Operation Window

    Ultra-fine, fine and coarse adjustments possible

    Load Calibration

    Simple load calibration with the touch of a button



  • MSAT (Multi Signal Analysis Testing)
    Data processing software



    The MSAT series is equipped with functions for not only testing machine operation but also data analysis, calculation and data storage for each testing mode. The operator can select Standard test (tensile, compression and bending) mode, Peeling test mode, Cycle test mode, Creep test mode, Stress relaxation test mode etc. depending on the purpose of the test.

    PC operation environment OS: Windows XP Professional. Program size: 80Mb or smaller. Memory requirement: 512Mb or over. Authority requirement: Administrator authority. USB: One USB port. Display resolution: 800x600 dots or higher color display.

      Touch Panel MSAT Display Commander Recorder
    MSAT Optional Standard
    (Mandatory)    		 Optional Optional Optional

    Standard layout setting during a measurement


    Status Display Window, Graph Display Window and Table Display Window


    Operation Conditions Window, Sample Information Window, Detailed Conditions Window, Dimension Table Window


    Analysis Condition Window, Table Display Window, Arbitrary Formula Window


    Reanalysis Window

  • Display & Commander
    RTF series with user interface for advanced operation



  • Display
    Detachable digital display for load and displacement indication. This display can be attached with magnets to any part of the machine and it does not obstruct the user when fixing a sample to the jig or testing a sample as its position can be freely adjusted.
    Fixing method Magnet attachment method
    Display data Load/displacement
    Load 6-digit indication
    Displacement 6-digit indication

    Load
    6-digit indication
    The indication unit will be automatically selected from kN, N, mN or N.

    Displacement
    1/1000 display at minimum
    The detachable display offers a more organized and efficient workspace.



  • Commander
    Handy compact commander for testing machine control. This commander can be attached to the top, bottom, left or right of the testing machine digital display for load and displacement indication.



    The commander's manual operation buttons are ergonomically designed with bright colors and varied sizes for superior ease-of-use. The jog dial on the right hand side of the commander offers extra flexible control and the operator can move the crosshead up and down by manually rotating this dial.

  • Applications
    A&D's wide range of applied products for even more advanced applications :

    Applied test jigs for strength measurement

    Screw action jaws


    Air jaws


    Compression cage


    Wedge action jaws


    Compression test jig


    Compression type bending test jig


    Applied testing devices for elongation measurement

    SG series strain gauge device for measuring distance between gauge marks


    Non-contact extensometer between gauge marks


    Applications

    LOT SET Application


    Excel PU


    Quality control application


    Applied testing devices for temperature / environment test


    · Constant temperature / constant humidity testing devices
    · High temperature testing devices
    · Ultra-low temperature testing devices
    · High humidity in gas atmosphere testing devices
    · High humidity in vacuum testing devices
    · Dipping testing devices

  • Data Recorder
    Analog recorder (AR-6600-7)



    This recorder is equipped with a control panel providing easy setup with one-touch zero-span adjustment and auto ranging.

  • Load frame table



      Dimensions (mm)
    RTF-20 for RTF-1310, RTF-1250, RTF-1225 and RTF-1210 680(W)x555(D)x630(H)
    RTF-22 for RTF-1350 and RTF-1325 897(W)x650(D)x460(H)
  • Recorder table (Wing)

      Dimensions (mm)
    RTF-21 for RTF-1350 and RTF-1325 420mm(W)x430mm(D)
    Can be mounted on either the right or left side.
    RTF-23 for RTF-1310, RTF-1250, RTF-1225 and RTF-1210 420mm(W)x430mm(D)
    Can be mounted on either the right or left side.
    Wing (sold separately)
