WinCT-FRD can produce a graph in real-time from the flow rate data transmitted from balances with the Flow Rate Display (FRD) function.
*The FRD function is currently available with GX-A/GF-A Series of multi-functional precision balances.

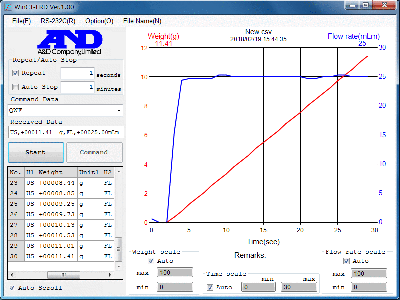

The weight and flow rate values transmitted from the balance can be simultaneously displayed on a two axis graph on the monitor.
You can check changes in weight and flow rate simultaneously in real time.
The axis scale of a graph automatically changes according to the data. It can be also changed manually.
The graph can be printed out using a printer or saved as an image file.
The recorded data can be saved in CSV or TXT format.
To graph both weight and flow rate, please set the application mode of the balance to Flow Measurement Mode. Refer to the GX-A/GF-A series manual for information on setting up the balance.
