X-Y Series

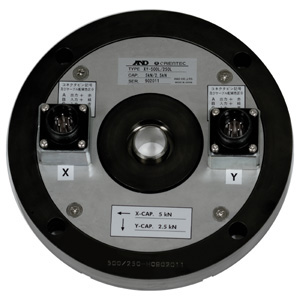

X-Y Force Type Load Cells
-
Capacity Model No. X-500 kg (5 kN) XY-500L / 250L Y-250 kg (2.5 kN) X-750 kg (7.5 kN) XY-750L / 250L Y-250 kg (2.5 kN) X-1000 kg (10 kN) XY-1000L / 500L Y-500 kg (5 kN) Note: XY-500L/500L to be specially designed and re-quoted
Additional Links
Rated capacity (R.C.) | X-500 kg Y-250 kg (X:5 kN, Y:2.5 kN) X-750 kg Y-250 kg (X:7.5 kN, Y:2.5 kN) X-1000 kg Y-500 kg (X:10 kN, Y:5 kN) |
|
Rated output (R.O.) | 2 mV/V ±1% (for X, Y) | |
Non linearity | 0.1% R.O. | |
Hysteresis | 0.05% R.O. | |
Repeatability | 0.05% R.O. | |
Recommended excitation voltage | 5 V to 10 V AC/DC | |
Max. excitation voltage | 20 V AC/DC | |
Zero balance | ± 1% R.O. | |
Input terminals bridge resistance | 350 Ω ± 3.5 Ω | |
Output terminals bridge resistance | 350 Ω ± 3.5 Ω | |
Insulation resistance | 2000 MΩ (B/E DC 50 V) | |
Cable diameter/length | φ7, 4-core shielded cable, 10 m, connector end | |
Zero point temperature effect | 0.05% R.O./10 °C | |
Temperature effect on output | 0.05% Load/10 °C | |
Temperature compensated range | –10 °C to +70 °C | |
Temperature usable range | –10 °C to +70 °C | |
Safe overload | 150% R.L. | |
Limited overload | 200% R.L. | |
Dustproof/Waterproof | IP54 | |
Natural frequency | More than 1 kHz | |
Crosstalk | 2.5 N or less (5 kN / 2.5 kN) 5.0 N or less (7.5 kN /5 kN, 10 kN, / 2.5 kN, 5 kN / 5 kN) |
Drawing
X-Y Series Brochure (PDF 339KB)
X-Y Load Cells and Tire Testers
- Ideal for tire uniformity measurement, etc.
- Simultaneous measurement in the X and Y directions with one unit
- Structure designed for excellent toughness and durability
- Minimal mutual interference with simultaneous loading on the X and Y axes
